Weidmuller 1909700000-1 Cable Gland M20 Polyamide Grey 1 piece

Image Representative of Range

Weidmuller 1909700000-1 Cable Gland M20 Polyamide Grey 1 piece

Weidmuller
Standard range
Order Code:

13-4951

Brand: Weidmuller MPN: 1909700000-1 EAN-13: 2050001365873
Qty Unit Price (Ex VAT)
1+ £1.01
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
111 in stock, despatched in 4 working days

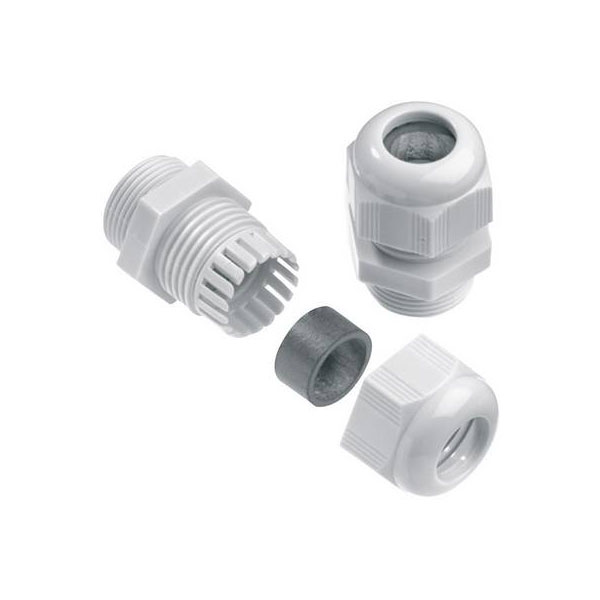

The Weidmüller cable gland, model 1909700000-1, is made from polyamide and is grey in colour, designed for M20 size applications. This durable gland, identified by the VG M20-K67 10-14 designation, ensures secure cable entry and protection. It is typically used in electrical enclosures to maintain ingress protection and cable management.
Type Cable gland
Clamp Ø 10mm
Clamping range diameter mm 10 - 14mm
External thread M20
Factory colour Grey
Halogen-free No
IP rating IP67
Length 41mm
Material Polyamide
Material (details) Plastic
Max. temperature +100°C
Min. temperature -20°C
Misc Attribute 1 VG M20-K67 10-14
Misc Attribute 2 Metric
RoHS-compliant Yes
Spanner size 27mm
Terminal Ø (max.) 14mm
Thread Length 10mm
Torque 6.5 Nm
Weight 12.7g
