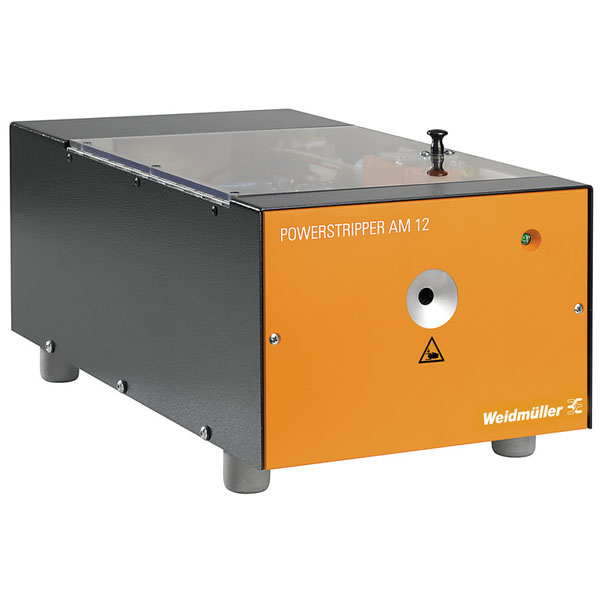

Weidműller 1534740000 Automatic Stripper Electropneumatic Tool

Weidmüllers 1534740000 Automatic Wire Stripper is an electropneumatic tool designed for precision and efficiency in stripping wires. This tool features automatic adjustment to various wire sizes, ensuring consistency and accuracy in electrical installations. It is typically used in automotive, industrial, and electronic wiring applications for streamlined and reliable wire preparation.

Type	Automatic Wire Stripper
Compressed-air connection	5 - 5.5 bar
Depth	230
Depth (inches)	9.0551 inch
Drive	Electropneumatic
ECLASS 14	17-13-01-01
ECLASS 15.0	17-13-01-01
Electrical Connection	100 - 240 V / 50/60 Hz /
ETIM 10	EC002778
ETIM 8.0	EC002778
ETIM 9.0	EC002778
Function	Skin
GTIN (EAN)	4050118338409
Height	520
Height (inches)	20.4724 inch
Insertion length	80mm
Max. dismantling area	11.90
Max. dismantling length	120mm
Min. dismantling area	3.5mm
Min. dismantling length	25mm
Net weight	17000g
Pull-off length	20 - 120mm
Pulse time	approx. 3 s
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	d2df479e-2b79-4e98-adc7-b03577df98ae
Strip length adjustable	true
Version	Tools, Automatic stripper
Width	254
Width (inches)	10 inch
