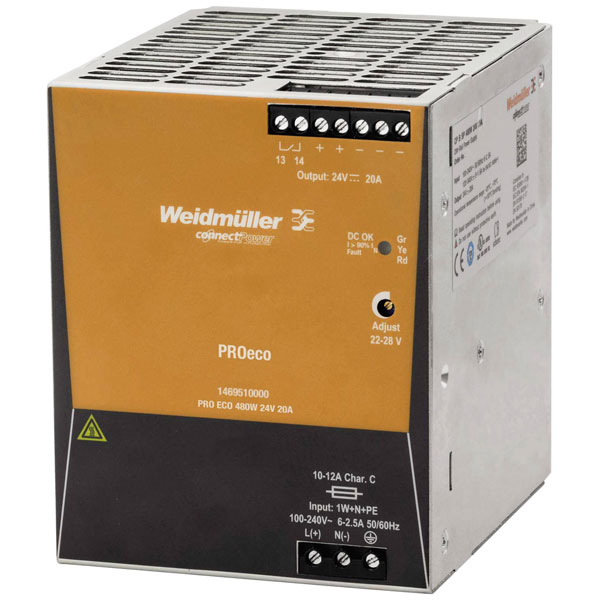

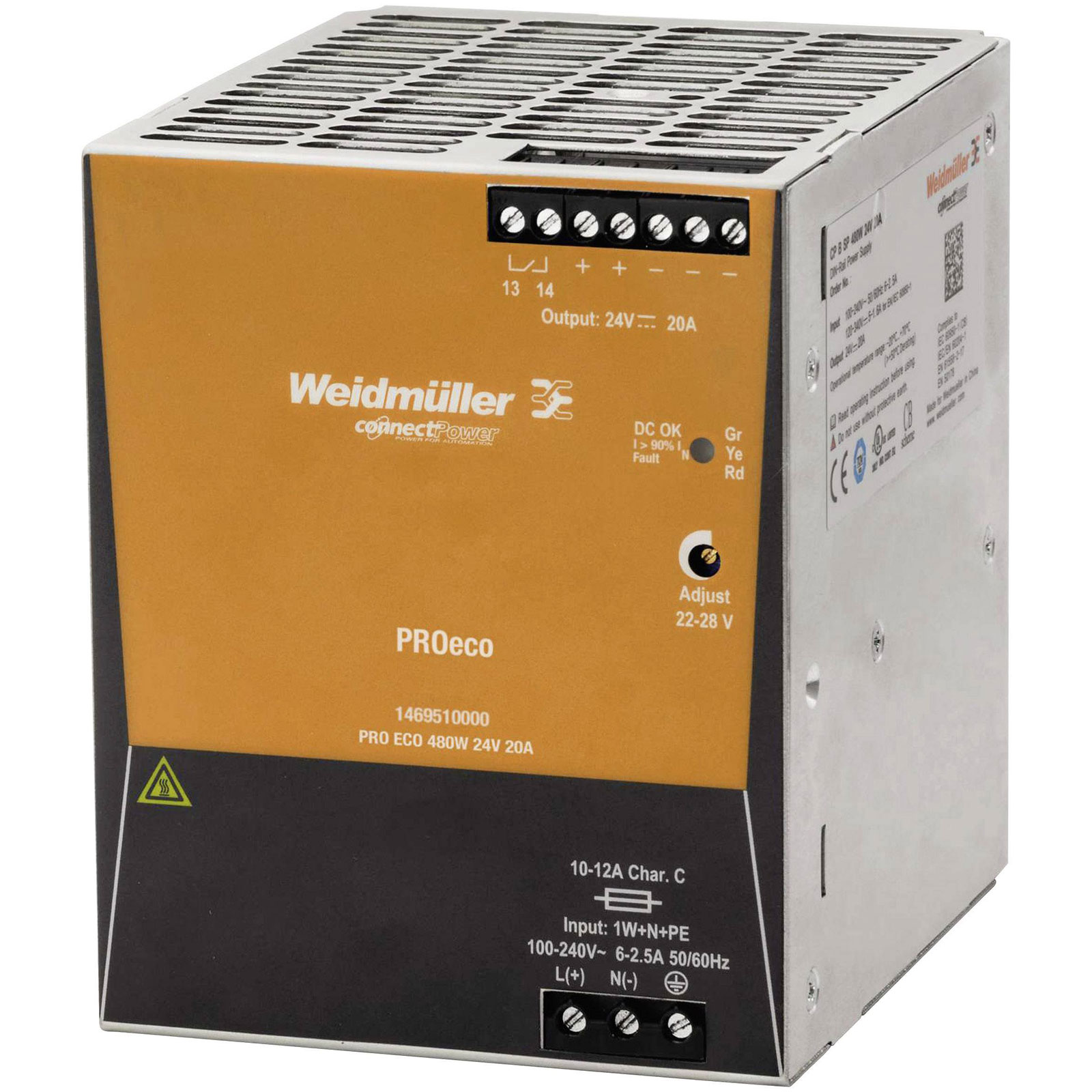

The Weidmüller PRO ECO 480W 24V 20A rail mounted PSU offers a single 24 V DC output at 20 A, providing reliable power with 480 W capacity. Designed for DIN rail mounting, it is well-suited for industrial automation and control systems. This power supply unit ensures efficient performance in industrial environments.
| Type |
Rail mounted PSU (DIN) |
| Output Voltage |
24V DC |
| Output Current |
20A |
| Number of Outputs |
1 |
| Power Rating |
480W |
| 0.98…115 V AC |
20 ms @ 115 V AC |
| 1st secondary output voltage |
24 - 24 |
| A @ 120 V DC |
120 V DC) |
| AC current consumption |
2,37 A @ 230 V AC / 5,2 |
| AC failure bridging time @ Inom |
> 20 ms @ 230 V AC / > |
| AC input voltage range |
85...264 V AC (derating at |
| against electrical shock |
DIN57100-410 |
| Alternative product |
PRO ECO 480W 24V 20A II |
| Approvals |
CE, cULus |
| Available until |
2026-12-30T00:00:00+01:00 |
| Built-in height |
225 |
| Built-in Width |
160 |
| Capacitive load |
unrestricted |
| Certificate no. (cULus) |
E258476 |
| Conductor cross-section, AWG/kcmil , 10 AWG |
Conductor cross-section, AWG/kcmil , 26 AWG |
| Conductor cross-section, AWG/kcmil , 12 AWG |
Conductor cross-section, AWG/kcmil , 26 AWG |
| Conductor cross-section, flexible , max. 2.5 mm² |
Conductor cross-section, flexible , min. 0.5mm² |
| Conductor cross-section, rigid , max. |
6mm² |
| Conductor cross-section, rigid , min. |
0.5mm² |
| Connection |
Screw terminal |
| Connection system |
Screw connection |
| Contact load (NO contact) |
max. 30 V DC / 1 A |
| Continuous output current @ UNominal 20 A @ 55 °C, 15 A @ 70 |
Ramp-up time |
| Current - Output 1 |
20A |
| DC current consumption |
1,55 A @ 370 V DC / 4,65 |
| DC input voltage range |
80...370 V DC (Derating @ |
| Degree of efficiency |
91% |
| Degree of protection (IP) |
IP20 |
| Delivery status |
This article will no longer be available in the future. |
| Depth |
120 |
| Depth (inches) |
4.7244 inch |
| Dim |
(L x W x H) 100 x 100 x 125 mm |
| Direct mounting possible |
false |
| Earth leakage current, max. |
3.5mA |
| ECLASS 14 |
27-04-07-01 |
| ECLASS 15.0 |
27-04-07-01 |
| Efficiency |
91% |
| Electric symbol |
Derating curve |
| Electrical machine equipment |
Acc. to EN60204 |
| EN55032 |
EN 61000-4-3 (RS), EN |
| ETIM 10 |
EC002540 |
| ETIM 8.0 |
EC002540 |
| ETIM 9.0 |
EC002540 |
| Floating contact |
Yes |
| For use with electronic equipment |
Acc. to EN50178 / |
| Frequency range AC |
47...63 Hz |
| GTIN (EAN) |
4050118275483 |
| Height |
125mm |
| Height (inches) |
4.9212 inch |
| Housing version |
Metal, corrosion resistant |
| Indication |
Green LED (Uoutput > |
| Input fuse (internal) |
Yes |
| Inrush current |
max. 5 A |
| Insulation voltage input / earth |
2 kV |
| Insulation voltage output / earth |
0.5 kV |
| Insulation voltage, input/output |
3 kV |
| Interference immunity test acc. to |
EN 61000-4-2 (ESD), |
| Isolation Voltage |
3kV |
| Length |
100mm |
| Limiting of mains voltage harmonic |
According to EN |
| Max Output Current |
20A |
| Max Output Power |
480W |
| Max Power Dissipation |
480W |
| max. |
min. |
| Max. operating temperature (derating) |
+70°C |
| Max. output current |
20A |
| Max. perm. air humidity (operational) |
5 %…95 % RH |
| Maximum Input Volage |
264V |
| Maximum Operating Temperature |
70°C |
| Maximum Temperature |
+85°C |
| Min Input Voltage (AC) |
85V |
| Min. operating temperature (derating) |
-25°C |
| Min. temperature |
-40°C |
| Minimum Input Volage |
85V |
| Minimum Operating Temperature |
-25°C |
| Misc Attribute |
PRO ECO 480W 24V 20A |
| Mount |
DIN Rail |
| Mounting position, installation notice |
on terminal rail TS 35 |
| Net weight |
1557g |
| Noise emission in accordance with |
Class B |
| Nominal Input Voltage |
100-240 V/AC |
| Nominal output current for Unom |
20 A @ 55°C |
| Nominal output voltage |
24V |
| Nominal power consumption |
527.5 VA |
| Nominal value output current 1 |
20 |
| Nominal value output voltage 1 |
24 |
| Operating Temperature |
-25 °C...70°C |
| Operating temperature (max.) |
+70°C |
| Operating temperature (min.) |
-25°C |
| Output Power |
480 W |
| Output Rating |
480W |
| Output voltage stabilized |
true |
| Output voltage, max. |
28 V |
| Output voltage, min. |
22 V |
| Output voltage, note |
(adjustable via |
| Overload protection |
Yes |
| Parallel connection option |
yes, max. 3 |
| Performance level according to EN ISO 13849-1 |
None |
| Phases |
1 |
| Pollution severity |
2 |
| Power Consumption |
527.5 |
| Power factor (approx.) |
> 0.98…230 V AC / > |
| Power loss, idling |
5 W |
| Power loss, nominal load |
43 W |
| Power Output |
480 |
| power supplies |
61558-2-16 |
| Protection against dangerous shock |
Acc. to VDE0106-101 |
| Protection against inverse voltage |
Yes |
| Protection against over-heating |
Yes |
| Protection Class |
I, with PE connection |
| Protection degree |
IP20 |
| Protective separation / protection |
VDE0100-410 / acc. to |
| Rated input voltage |
100...240 V AC |
| Rated output voltage |
24 V DC ± 1 % |
| Rated supply voltage AC 50 Hz |
85 - 264 |
| Rated supply voltage AC 60 Hz |
85 - 264 |
| Rated supply voltage DC |
80 - 370 |
| REACH SVHC |
Lead 7439-92-1 |
| Reach SVHC Compliant |
No |
| Recommended back-up fuse |
6 A / DI, safety fuse |
| Relay on/off |
Output voltage |
| Residual ripple, breaking spikes |
<50 mVPP @ 24 V DC, IN |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| Safety extra-low voltage |
SELV acc. to IEC 60950-1, |
| Safety transformers for switch-mode |
According to EN |
| SCIP |
6d8cdf22-8230-4af8-86c8-3558c716666d |
| Series |
PRO ECO |
| Shock resistance IEC 60068-2-27 |
15 g In all directions |
| Short-circuit protection |
Yes |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
None |
| Stabilized |
true |
| Storage temperature |
-40 °C...85°C |
| Suitable for distribution board |
false |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
false |
| Surge protection |
Varistor |
| Surge voltage category |
II |
| Tightening torque, max. |
0.6 Nm |
| Tightening torque, min. |
0.5 Nm |
| Type of electric connection |
Screw connection |
| UL File Number Search |
UL Website |
| Version |
Power supply, switch-mode power supply unit, 24 |
| Vibration resistance IEC 60068-2-6 |
1 g according to EN |
| Voltage - Output 1 |
24V |
| Voltage type (supply voltage) |
AC/DC |
| Wall mounting possible |
true |
| Weight |
1600g |
| Width |
100mm |
| Width (inches) |
3.937 inch |
| Wire connection cross section, flexible 2.5 mm² |
Conductor cross-section, flexible , min. 0.5mm² |
