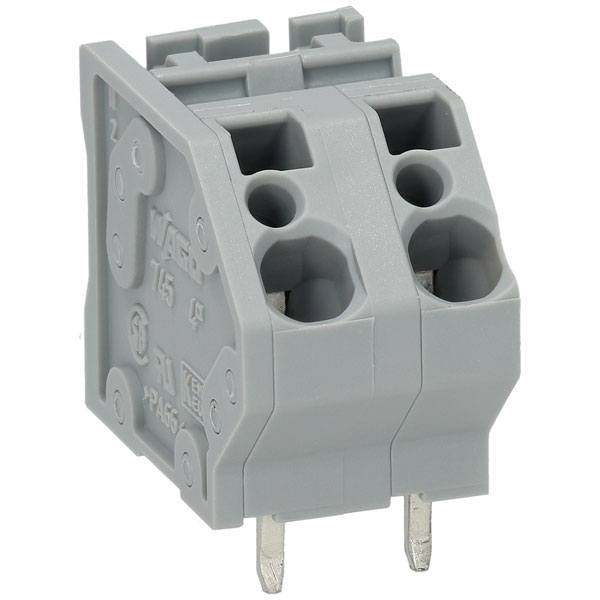

WAGO 745-152 2 Pole Screwless Terminal Block 7.5mm Pitch

WAGO
Order Code:

52-2285

Brand: WAGO MPN: 745-152 EAN-13: 4045454378134
Qty Unit Price (Ex VAT)
180+ £1.43
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 180
360 in stock, despatched same dayAdditional quantity lead time 7 weeks

PCB terminal block; 4 mm²; Pin spacing 7.5 mm; 2-pole; CAGE CLAMP®; commoning option; 4,00 mm²; grey

These WAGO PCB mounting terminal blocks can be used with either solid or fine stranded conductors. They feature double solder pins for additional mechanical stability.


  • 2-pole terminal block
  • PCB terminal strips with screwdriver-actuated CAGE CLAMP® connections
  • Common and distribute potentials via comb-style jumper bars
  • Double solder pins for high mechanical stability
  • Versions with Ex approval
  • Integrated testing tap
  • Marker slot for Mini-WSB markers
  • Manufacturer's part 745-152
Pitch 7.5mm
No. of Ways 2
Mounting Type Through Hole
Mounting Direction 45°
Wire Gauge (AWG) 4mm²
Wire Termination CAGE CLAMP®
Base Unit of Measure PCE
Category PCB Terminal Blocks and Connectors
Colour Grey
Country of origin PL
Current Rating 32A
Customs tariff number 85369010000
Depth inch 0.902 inches
Depth mm 22.9mm
ETIM8 Link Classification Reference EC002643
Fine-stranded conductor max. AWG 12 AWG
Fine-stranded conductor max. mm² 4 mm²
Fine-stranded conductor min. AWG 12 AWG
Fine-stranded conductor min. mm² 0.08 mm²
Flammability class according to UL94 V0
Gross weight incl. packing 0.98
Height in mm Packaging 72
Height inch 0.906 inches
Height mm 23mm
Length in mm Packaging 285
Manufacturer WAGO
No. of Levels 1
Packaging Box
Product Main Function PCB terminal block
Rated current 32 A
Rated surge voltage (II / 2) 6 kV
Rated voltage (II / 2) 1000 V
Single-stranded conductor max. AWG 12 AWG
Single-stranded conductor max. mm² 4 mm²
Single-stranded conductor min. AWG 28 AWG
Single-stranded conductor min. mm² 0.08 mm²
Status ACTIVE
Stripping length of 1 mm 8mm
Stripping length up to 1 mm 9mm
Total number of potentials 2
Total number of terminal points 2
Type of operation Operating tool
Unit of dimension (length, etc.) MMT
Unit Weight KGM
Voltage Rating 300V
Weight 4.984 g
Width in mm Packaging 134
Width inch 0.551 inches
Width mm 14mm
