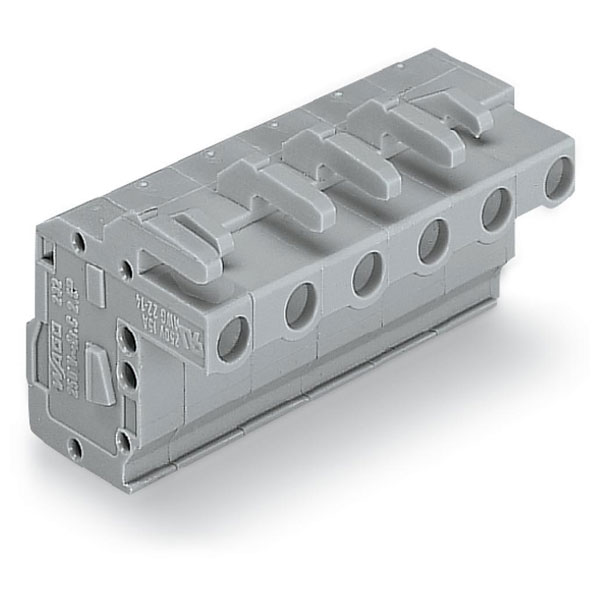

WAGO 732-103/026-000 Female MCS-MIDI 3P 7.5mm Latched Angled Opposite

WAGO
Order Code:

57-2598

Brand: WAGO MPN: 732-103/026-000 EAN-13: 4044918391610
Qty Unit Price (Ex VAT)
100+ £2.31
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 100
Available to back orderBack-order availability date - 27/04/2026


  • AWG size: 28 - 12
  • Additional product details: ANGLED FEM.CON. OPP.TO L. 7.5MM 3P.
  • Colour: Grey
  • Contact material: Copper alloy
  • Grid pitch: 7.5mm
  • Stripping length: 8 - 9mm
  • Type (manufacturer type): ANGLED FEM.CON. OPP.TO L. 7.5MM 3P.
Body Style Female connector/socket
Pitch 7.5mm
No of Ways Per Row 3
No. of Rows 1
Current Rating 14 A
Colour Grey
Wire Gauge (AWG) 28 AWG
Wire Gauge (mm²) 0.08 mm²mm²
Category PCB Terminal Blocks and Connectors;Pluggable Connectors;Lighting Connection
Connection CAGE CLAMP®
Depth inch 0.896 inches
Depth mm 22.75mm
Flammability class according to UL94 V0
Height inch 0.941 inches
Height mm 23.9mm
Rated surge voltage (II / 2) 6 kV
Rated voltage (II / 2) 1000 V
Stripping length of 1 mm 8mm
Stripping length up to 1 mm 9mm
Total number of potentials 3
Type of operation Operating tool
Unit Weight KGM
Weight 6.628 g
Width inch 0.882 inches
Width mm 22.4mm
