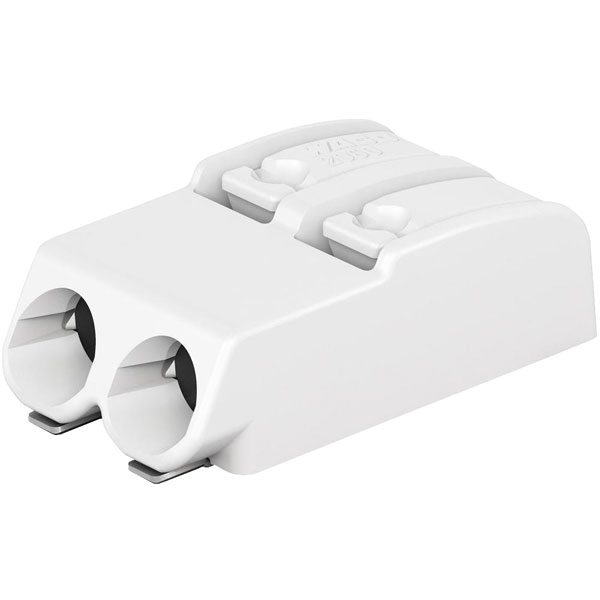

WAGO 2060-452/998-404 SMD Terminal Block 4mm 2 Pole White Tape & Reel

MPN: 2060-452/998-404
Brand: WAGO
EAN-13: 4055143135078
Order Code: 21-4287
Country of Origin: Switzerland

RoHS Compliant
Free UK shipping available

View Full Product Range (2)

Inc VAT

Qty	Unit Price (Ex VAT)
1000+	£0.466

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1000

Available to back orderBack-order availability date - 20/08/2026

Product Details
Product Range
Data Sheets

SMD PCB terminal blocks from WAGO with pushbutton and push-in CAGE CLAMP® connection, supplied in tape-and-reel packaging for automated assembly.

Height of just 4.5 mm minimises on-board LED shadowing
Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature
Colour: white
Pin spacing: 4mm
Tin-plated copper alloy contacts
2-way terminal block
Terminates conductors from 24 to 18 AWG (0.2 to 0.75mm²)
Push-buttons for easy connection and removal of all types of conductors
Group arrangement is possible without losing any poles
Manufacturer's part 2060-452/998-404

Pitch	4mm
No. of Ways	2
Mounting Type	Surface mount
Mounting Direction	Vertical
Wire Gauge (AWG)	24 to 18AWG
Wire Termination	Push-in CAGE CLAMP®
Category	PCB Terminal Blocks and Connectors;Lighting Connection
Colour	White
Current Rating	9A
Depth	13.1mm
Depth inch	0.516inches
Fine-stranded conductor max. AWG	18 AWG
Fine-stranded conductor max. mm²	0.75mm²
Fine-stranded conductor min. AWG	18 AWG
Fine-stranded conductor min. mm²	0.2mm²
Flammability class according to UL94	V0
Height	4.5mm
Height inch	0.177inches
Maximum Wire Size AWG	18
No. of Levels	1
Number of pins	2
Product Main Function	PCB terminal block
Rated current	9 A
Rated surge voltage (II / 2)	2.5 kV
Rated voltage (II / 2)	320 V
Single-stranded conductor max. AWG	18 AWG
Single-stranded conductor max. mm²	0.75mm²
Single-stranded conductor min. AWG	24 AWG
Single-stranded conductor min. mm²	0.2mm²
Stripping length of 1 mm	7mm
Stripping length up to 1 mm	9mm
Total number of potentials	2
Total number of terminal points	2
Type	Spring-loaded terminal
Type of operation	Push-button
Unit Weight	KGM
Voltage Rating	320V
Weight	0.518g
Width	7.9mm
Width inch	0.311inches
