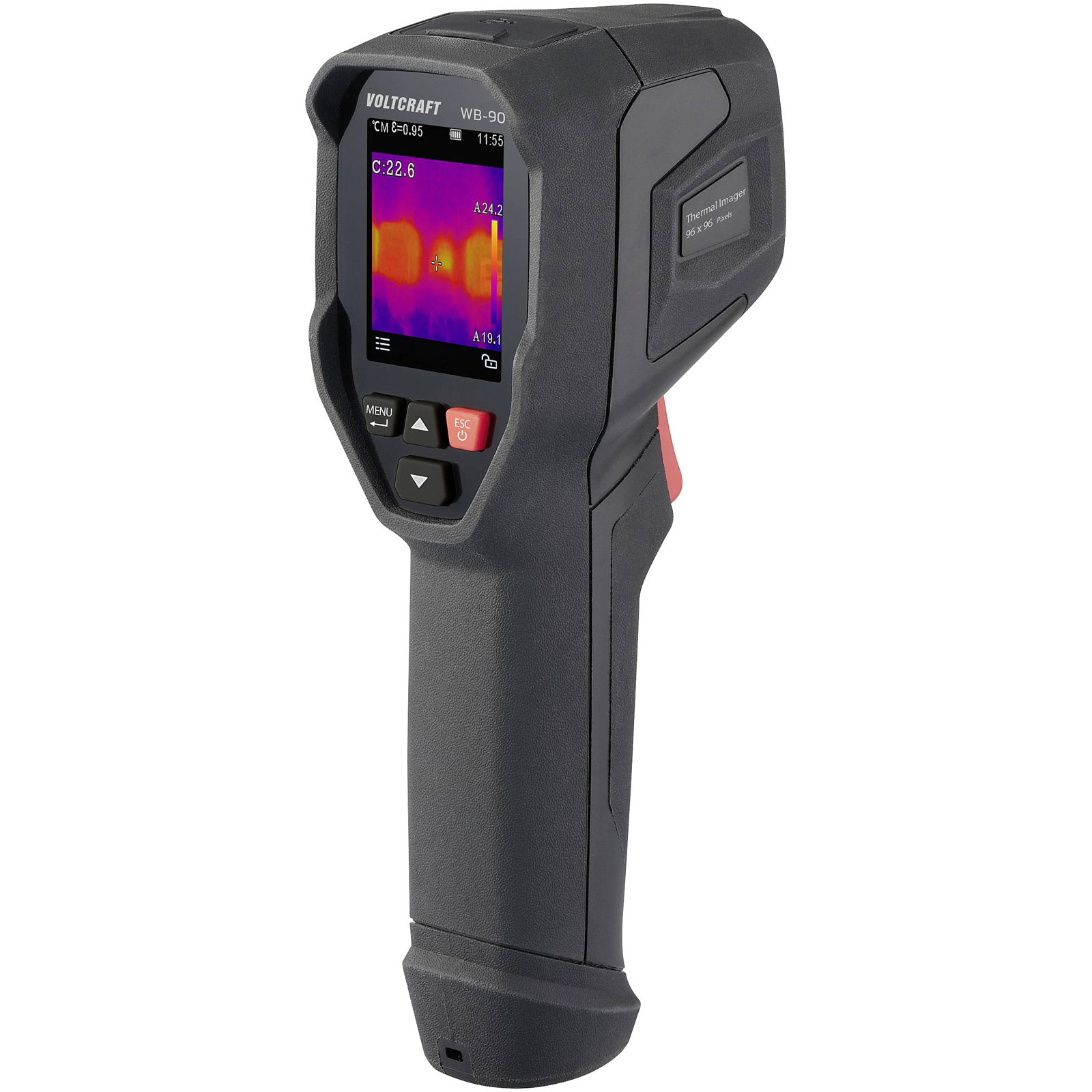

VOLTCRAFT VC-16690660 WB-90 IR camera -20 to 550°C 96x96 pixels USB-C

VOLTCRAFT VC-16690660 is an infrared camera, designated as the WB-90, that operates within a temperature range of -20 to 550°C. This product features a resolution of 96x96 pixels and utilises a USB-C interface for connectivity, allowing for straightforward data transfer and integration with modern devices. Often identified by its alternate description, 3338132 - VOLTCRAFT VC-16690660, this IR camera is particularly suitable for engineering applications such as predictive maintenance, electrical inspections, and thermal analysis in industrial environments. Its robust design ensures reliable performance in diverse conditions, offering precise thermal imaging capabilities that support engineers in accurately diagnosing heat-related issues.

Type	WB-90
Accuracy ± °C	2°C
Basic accuracy	2%
Bolometer array	96 x 96 Pixel
Colour schemes	8
Connection	USB
Dimensions	(L x W x H) 58 x 81 x 185 mm
Display Resolution	320 x 240 Pixel
Emission level (max.)	1.00
Emission level (min.)	0.01
Focus	Fixed-focus
Frame rate	25Hz
Geometric resolution (IFOV)	8.89mrad
Height	185mm
Interfaces	USB
IP Rating	IP54
Length	58mm
Min. focusing distance	0.5m
Power supply (details)	5V DC
Product Type	IR camera
Temperature reading range	-20 up to 550 °C
Temperature reading range (max.)	550°C
Temperature reading range (min.)	-20°C
Temperature resolution	0.1°C
Thermal Sensitivity	50mK
Weight	260g
Width	81mm
