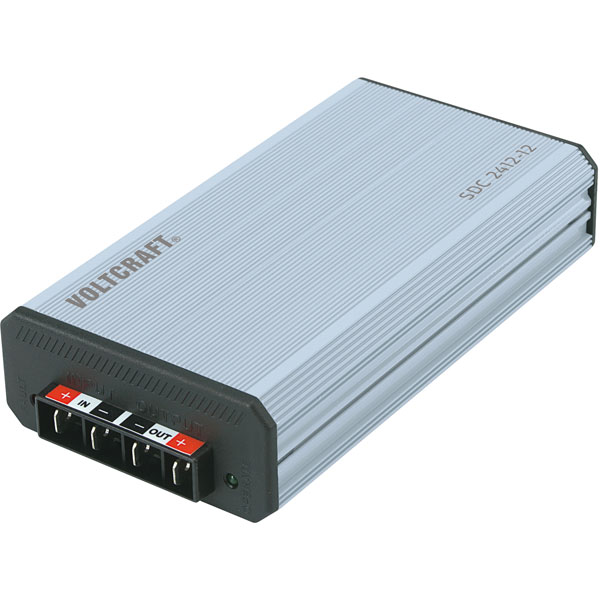

The Voltcraft SDC-2412-12 166W switched-mode DC/DC converter enables operation of 12V DC consumer items, such as cold bags, refrigerator boxes or cabinets and mobile HiFi units from a 24V DC battery supply system or other supply between 18 and 38V DC. The 24V DC supply is converted to 12V DC via a clocked IC-controlled circuit. This device is characterized by small dimensions and low weight compared with conventional in-line voltage transformers. The degree of efficiency is approx. 89%. Using a fanless design means the case is sealed against the ingress of dust. The device is protected against short-circuits, reverse polarity, overloads, and surges.
- High degree of efficiency >89%
- High performance 166W
- Input voltage 18 to 38V DC
- Output voltage 13.8V DC at 12A
- Dimensions 75 x 142 x 32mm
- Weighs 380g
Mounting Style |
Clamp |
Number of Outputs |
1 |
Output Voltage Min |
N/A |
Output Voltage Max |
24V |
Output Current Min |
N/A |
Output Current Max |
12000mA |
Power Rating |
166W |
Supply Voltage Range |
18 to 38V |
Temperature Range |
N/A |
