Voltcraft SDC Voltage Switched Mode DC/DC Converter 13.8V DC Out

VOLTCRAFT Brand: VOLTCRAFT

The Voltcraft SDC switched-mode DC/DC converter enables operation of 12V DC consumer items, such as cold bags, refrigerator boxes or cabinets and mobile HiFi units from a 24V DC battery supply system or other supply between 18 and 38V DC. The 24V DC supply is converted to 12V DC via a clocked IC-controlled circuit. This device is characterized by small dimensions and low weight compared with conventional in-line voltage transformers. The degree of efficiency is >85%. The SDC-2000 converters use a fanless design which means the case is sealed against the ingress of dust, and they are protected against short-circuits, reverse polarity, overloads, and surges. The SDC-200 converters have an integrated fan and short circuit protection.

Description Image Product Buy Pricing (Ex VAT) Power Rating Output Current Output Voltage Input Voltage Range Number of Outputs Mounting Style
VOLTCRAFT SDC 2412-5 DC/DC Converter 70W 24VDC 13.8VDC
VOLTCRAFT SDC 2412-5 DC/DC Converter 70W 24VDC 13.8VDC
Standard range
Order code: 55-8245
MPN: SDC 2412-5

143 in stock, despatched in 4 working days
1+ £20.51
Price per unit Ex VAT 		70W 5000mA 24V 18 to 38V 1 Clamp
Voltcraft SDC 2412-12 DC/DC Converter 166W 24VDC 13.8VDC
Voltcraft SDC 2412-12 DC/DC Converter 166W 24VDC 13.8VDC
Standard range
Order code: 55-8246
MPN: SDC 2412-12

45 in stock, despatched in 4 working days
1+ £52.90
Price per unit Ex VAT 		166W 12000mA 24V 18 to 38V 1 Clamp
Order code Mftrs. part no. Efficiency Power Input volts Output current Dimensions Weight
(%) (W) (V DC) (A DC) (mm) (g)

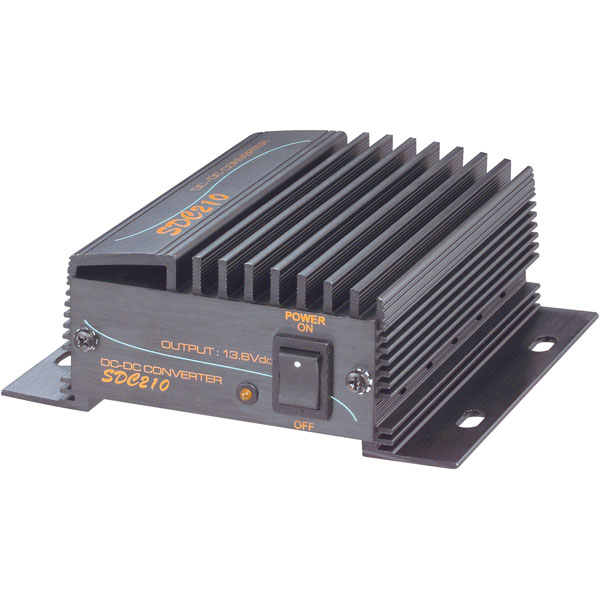

55-8242*SDC-210 85% 110 24 8 120 x 126 x 47 650
55-8244*SDC-245 85% 550 24 2 x 20 240 x 156 x 57 2200
55-8245**SDC 2412-5 >89% 70 18 to 38 5 75 x 77 x 32 190
55-8246**SDC 2412-12 >89% 166 18 to 38 12 75 x 142 x 32 380

*Short circuit protection

**Short-circuit, reverse polarity, overload, and surge protection
