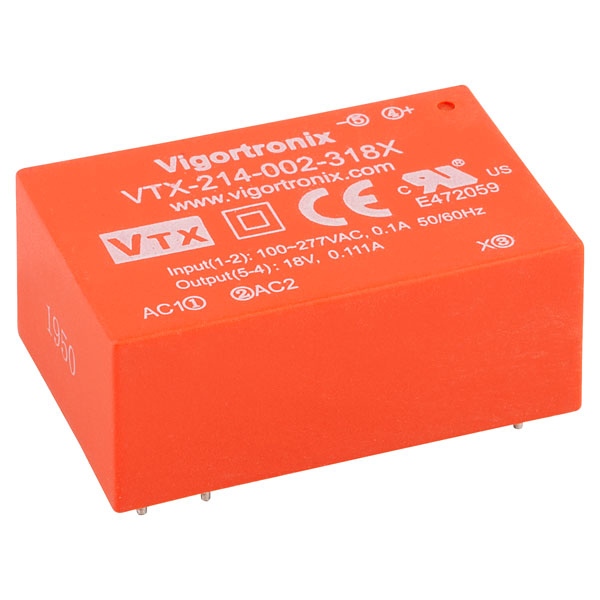

Vigortronix VTX-214-002-318X 2W HIGH PERFORMANCE AC-DC CONVERTER 85-305V - 18V

MPN: VTX-214-002-318X
Brand: Vigortronix
Order Code: 88-0077
Country of Origin: China

RoHS Compliant

Discontinued

Product Details
Data Sheets

A 18V 2W high performance zero crossing AC-DC convertor that features a low profile case and a regulated single output. A wide input voltage range makes it suitable for a wide variety of applications.

Low profile < 15.0mm height
Input voltage range 90 to 305V AC
Regulated single output
Low standby power
Fully isolated Pri - Sec > 3600V
Rating UL 94V-0, TUV

Number of Outputs	1
Output Power Max	2W
Output Voltage	18V
Output Current	111mA
Mounting Type	PCB
Dimensions	37 x 24 x 15mm
Efficiency	72%
Input Voltage	90 to 305V
Isolation Voltage (AC)	3600V
