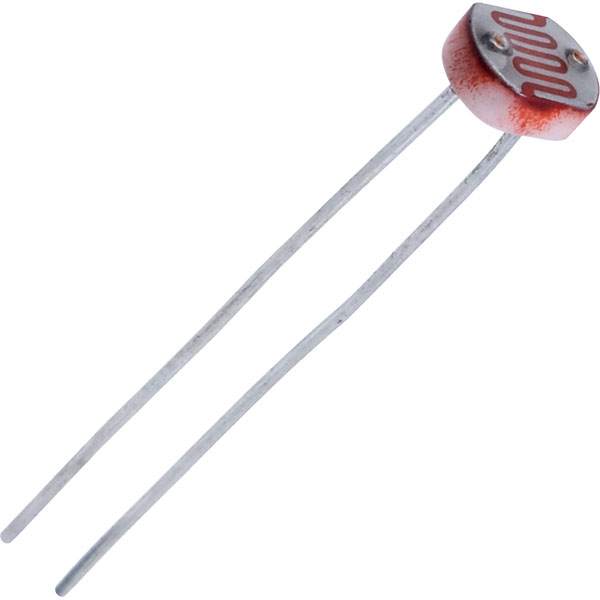

TruOpto GL5528 Light Dependent Photoresistor



TruOpto
TruOpto

MPN : GL5528


Order Code:

58-0134




Price per unit
Qty Ex Vat
5+ £0.412
25+ £0.337
100+ £0.256
1000+ £0.221

Get a quote for large quantities here

MOQ is 5
Sold in multiples of 5


9235 In Stock
Same day despatch

  •  RoHS Non Compliant
  • REACH Non-compliant


  • {{attr.Name}}

    {{value.Name}}





Buy light dependent photo resistor - a compact low cost cadmium sulphide light dependant photo resistor housed in a small package.

Coated With epoxy, good reliability, high sensitivity, fast response, good spectrum characteristic. Consists of a resistor which is made of semiconductor material whose conductance changes with variations in luminance. Typical applications include camera automatic photometry, photoelectric control, lighting control, annunciators, industrial control, light control switches and lamp electronic toys.


  • 5mm diameter
  • Clear epoxy finish
  • Resistance reduces as the light falling on the device increases
  • Note: This product contains cadmium sulphide, the use of which is restricted by the RoHS directive

Dark resistance1MΩ
Resistance @ 10 Lux10-20kΩ
Resistance @ 100 Lux2-4kΩ
Peak spectral response540nm
Max. voltage150V peak AC or DC
Power dissipation

100mW

Lead pitch

3mm

Operating temperature

–30°C to +70°C

Question by KEVIN OLIVER | Product code: 58-0134
08 October 2012

Q Can you tell me the pitch of this please URGENT cheers kev
A Hi Kevin, the pitch is 3mm.

Question by James | Product code: 58-0134
12 March 2012

Q Does this LDR have a minimum voltage? Thanks
A Hi James, thanks for your question. There is no minimum voltage - an LDR is just a resistance that changes with light.

LDR photocell excels
Reviewed by: Michael denton
26 June 2014

I use hundreds of these LDRs and not one failure in three years.
