TruComponents Pushbutton Switches, Panel Mount, Off/(On), SPST, Solder, IP65

TruComponents Brand: TruComponents
TruComponents pushbutton switches, panel mount switches designed for momentary Off/(On) action with SPST configuration. They supports 48V DC and a current rating of 2A, featuring solder terminals and IP65 environmental protection. Ideal for industrial and outdoor applications, these switches provide reliable performance where robust environmental resistance is required.
Description Image Product Buy Pricing (Ex VAT) Casing/button Colour Type Contact Configuration Switch Function Current Rating Mounting Voltage Rating Panel Cutout Dimensions Board thickness (max.) Connection Contact Material Contact Resistance Dielectric Strength Electrical lifespan Insulation Resistance IP Rating Maximum Temperature Min. temperature Plastic free packaging Recess depth

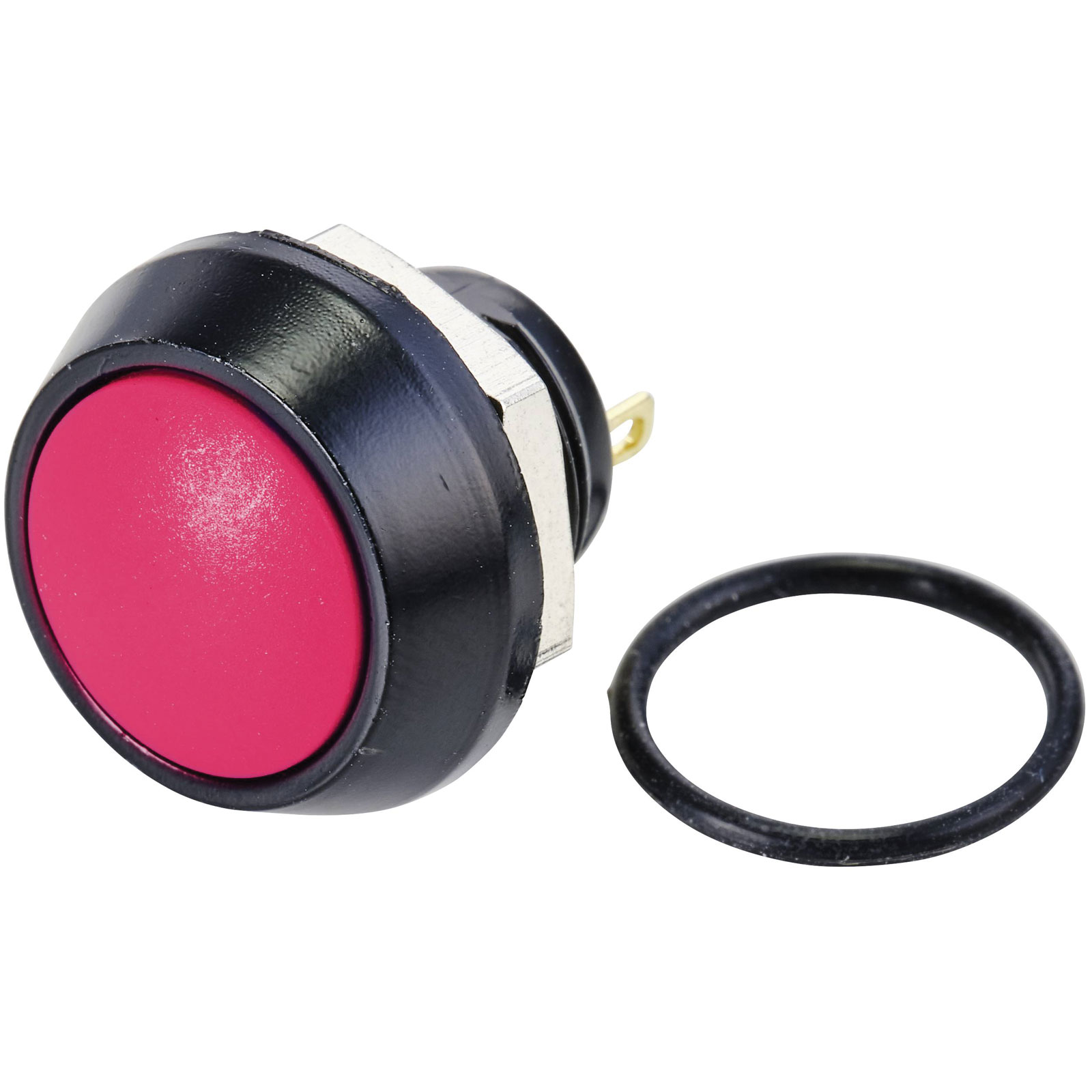

TruComponents 782153 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65
TruComponents 782153 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65
Standard range
Order code: 78-2153
MPN: 782153

Despatched within 4 working days - 113 in stock
2+ £4.04
5+ £3.95
10+ £3.85
25+ £3.76
50+ £3.68
100+ £3.60
Price per unit Ex VAT 		Black/red Pushbutton 1 x Off/(On) 1 maker 2A Panel 48V 13 4mm Soldering Silver alloy ≤ 50 mΩ 1500 VAC 200000 ≥ 100 MΩ IP65 +55°C -25°C Plastic-free packaging 12.5mm
TruComponents 782154 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65
TruComponents 782154 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65
Standard range
Order code: 78-2154
MPN: 782154

Despatched within 4 working days - 159 in stock
2+ £3.88
5+ £3.79
10+ £3.70
25+ £3.61
50+ £3.54
100+ £3.46
Price per unit Ex VAT 		Black/green Pushbutton 1 x Off/(On) 1 maker 2A Panel 48V 13 4mm Soldering Silver alloy ≤ 50 mΩ 1500 VAC 200000 ≥ 100 MΩ IP65 +55°C -25°C Plastic-free packaging 12.5mm
TruComponents 782155 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65
TruComponents 782155 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65
Standard range
Order code: 78-2155
MPN: 782155

Despatched within 4 working days - 127 in stock
2+ £3.73
5+ £3.64
10+ £3.55
25+ £3.47
50+ £3.40
100+ £3.32
Price per unit Ex VAT 		Black/blue Pushbutton 1 x Off/(On) 1 maker 2A Panel 48V 13 4mm Soldering Silver alloy ≤ 50 mΩ 1500 VAC 200000 ≥ 100 MΩ IP65 +55°C -25°C Plastic-free packaging 12.5mm
TruComponents 782156 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65
TruComponents 782156 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65
Extended range
Order code: 78-2156
MPN: 782156

Available to back orderBack order, lead time 4 weeks
2+ £4.00
5+ £3.89
10+ £3.81
25+ £3.72
50+ £3.64
100+ £3.56
Price per unit Ex VAT 		Black Pushbutton 1 x Off/(On) 1 maker 2A Panel 48V 13 4mm Soldering Silver alloy ≤ 50 mΩ 1500 VAC 200000 ≥ 100 MΩ IP65 +55°C -25°C Plastic-free packaging 12.5mm
