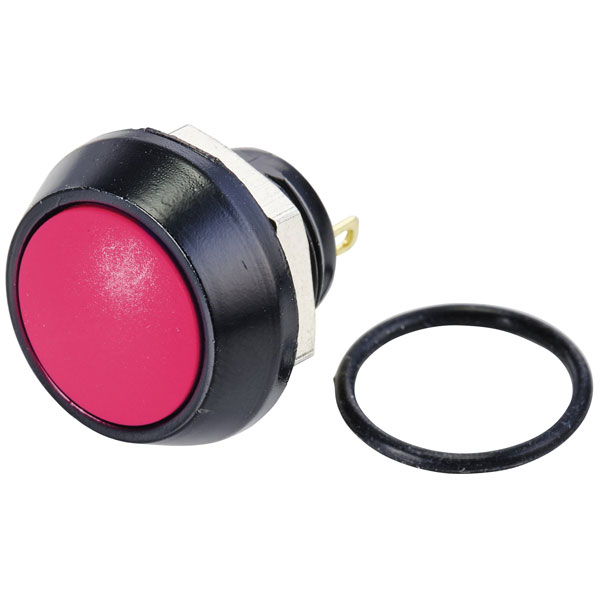

TruComponents 782153 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65

MPN: 782153
Brand: TruComponents
EAN-13: 4064161206301
Order Code: 78-2153
Country of Origin: China

Free UK shipping available

Quickly find another product in this range by Casing/button Colour:

Black Black/blue Black/green Black/red

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£4.04
5+	£3.95
10+	£3.85
25+	£3.76
50+	£3.68
100+	£3.60

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 113 in stock

Product Details
Product Range
Data Sheets

The TruComponents TC-10091000, 2522750 pushbutton is a panel mount, SPST switch designed for off/(on) momentary action. It features a 48V DC voltage rating and can handle up to 2A, with an IP65 rating for protection against dust and water. This pushbutton is ideal for applications requiring occasional activation, such as control panels and industrial equipment.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	2A
Mounting	Panel
Voltage Rating	48V
Panel Cutout Dimensions	13
Board thickness (max.)	4mm
Casing/button Colour	Black/red
Connection	Soldering
Contact Material	Silver alloy
Contact Resistance	≤ 50 mΩ
Dielectric Strength	1500 VAC
Electrical lifespan	200000
Insulation Resistance	≥ 100 MΩ
IP Rating	IP65
Maximum Temperature	+55°C
Min. temperature	-25°C
Plastic free packaging	Plastic-free packaging
Recess depth	12.5mm
Recess Diameter	13mm
Switching Voltage	48V DC
