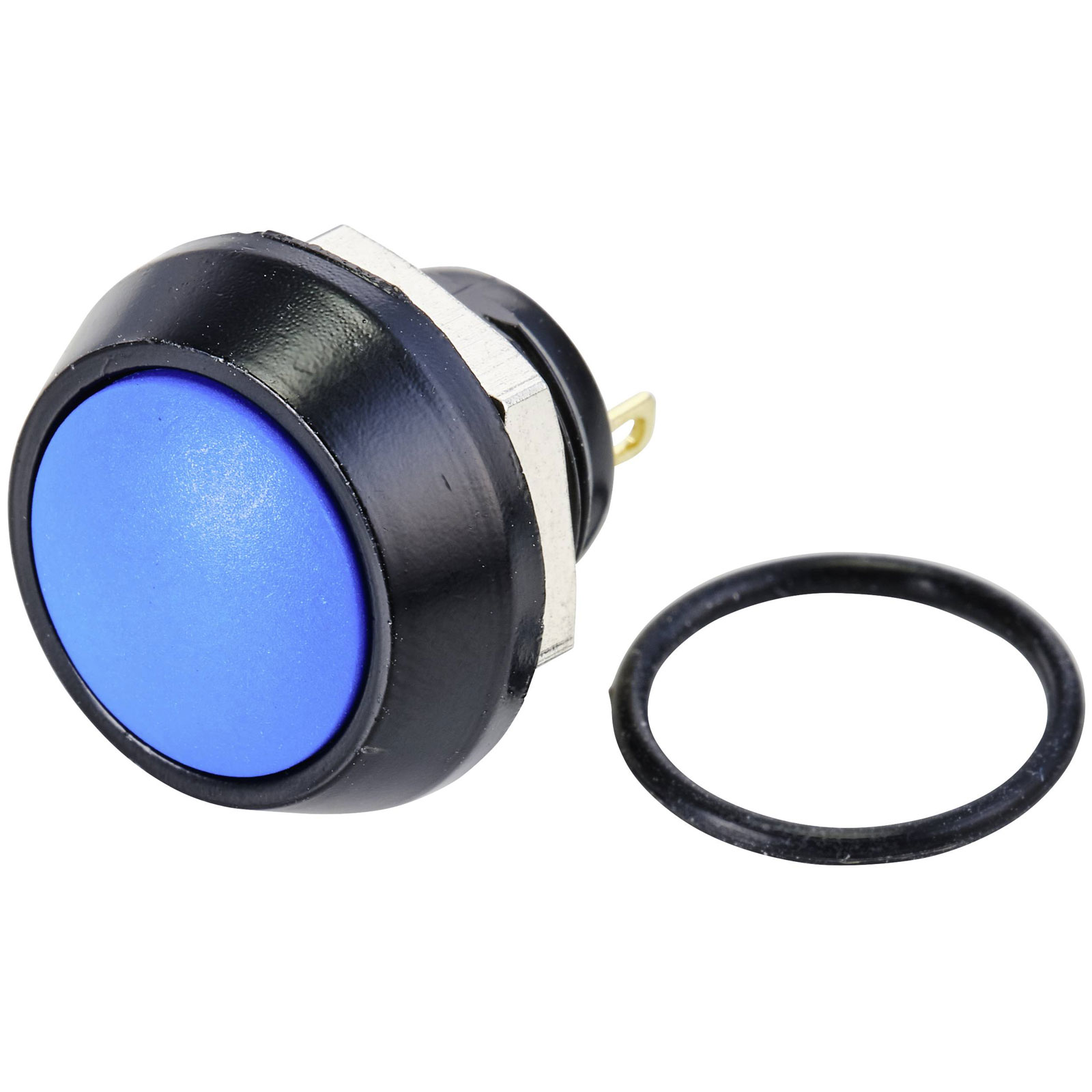

TruComponents 782155 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65

MPN: 782155
Brand: TruComponents
EAN-13: 4064161206325
Order Code: 78-2155
Country of Origin: China

Free UK shipping available

Quickly find another product in this range by Casing/button Colour:

Black Black/blue Black/green Black/red

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£3.73
5+	£3.64
10+	£3.55
25+	£3.47
50+	£3.40
100+	£3.32

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 127 in stock

Product Details
Product Range
Data Sheets

The TruComponents TC-10091008, 2522752 is a panel mount pushbutton with an Off/(On) momentary action. It has a voltage rating of 48V DC and a current rating of 2A, featuring a SPST configuration with IP65 protection. This pushbutton is ideal for use in environments requiring reliable sealing and is suitable for industrial control applications.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	2A
Mounting	Panel
Voltage Rating	48V
Panel Cutout Dimensions	13
Board thickness (max.)	4mm
Casing/button Colour	Black/blue
Connection	Soldering
Contact Material	Silver alloy
Contact Resistance	≤ 50 mΩ
Dielectric Strength	1500 VAC
Electrical lifespan	200000
Insulation Resistance	≥ 100 MΩ
IP Rating	IP65
Maximum Temperature	+55°C
Min. temperature	-25°C
Plastic free packaging	Plastic-free packaging
Recess depth	12.5mm
Recess Diameter	13mm
Switching Voltage	48V DC
