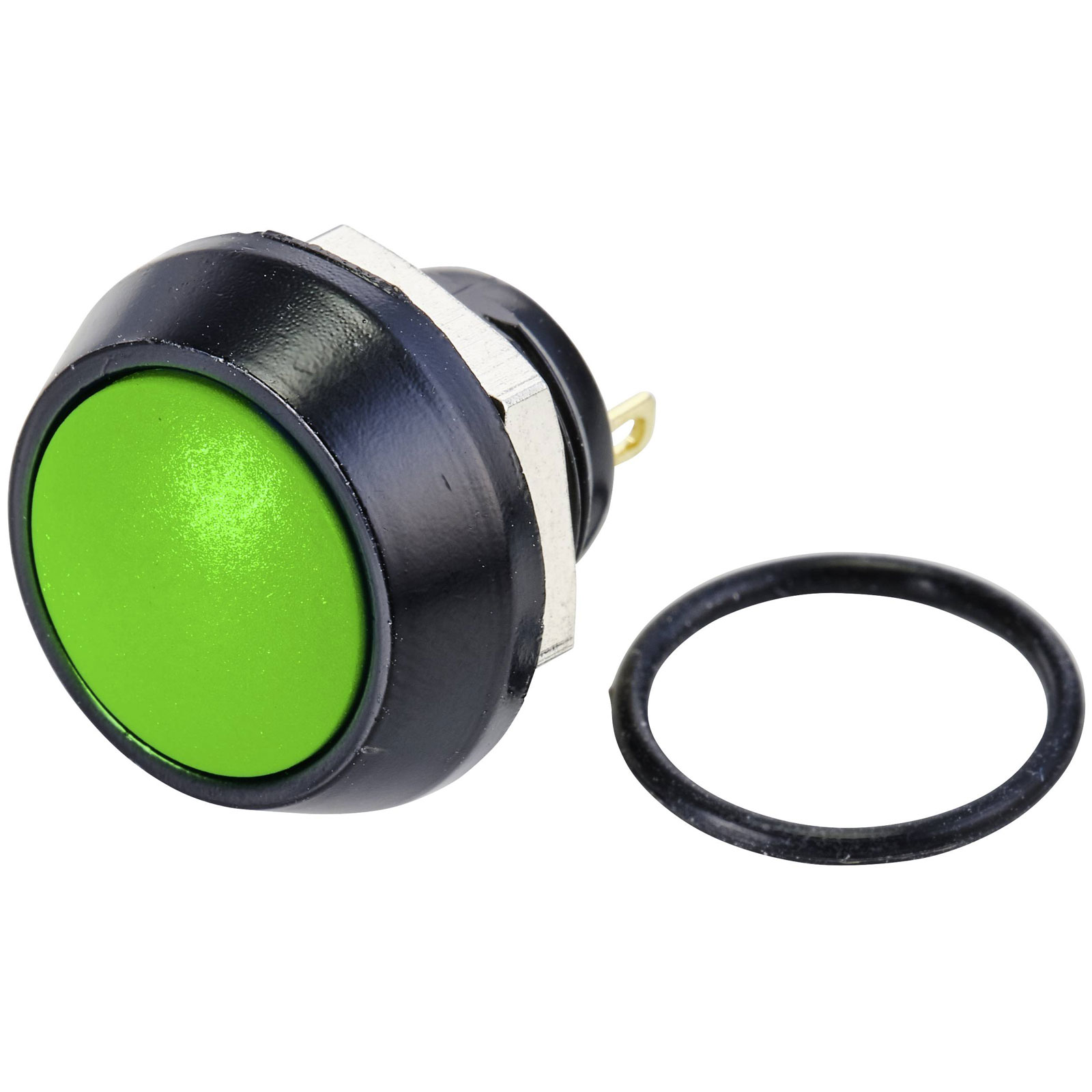

TruComponents 782154 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP65

MPN: 782154
Brand: TruComponents
EAN-13: 4064161206318
Order Code: 78-2154
Country of Origin: China

Free UK shipping available

Quickly find another product in this range by Casing/button Colour:

Black Black/blue Black/green Black/red

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£3.88
5+	£3.79
10+	£3.70
25+	£3.61
50+	£3.54
100+	£3.46

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 159 in stock

Product Details
Product Range
Data Sheets

TruComponents manufactures the TC-10091004, 2522751 pushbutton, a panel mount switch with an IP65 rating, suitable for demanding environments. This SPST switch is momentary with an Off/(On) action, handling 48V DC at 2A, ideal for low-voltage applications. It is typically used in equipment requiring reliable tactile feedback, such as control panels and industrial machinery.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	2A
Mounting	Panel
Voltage Rating	48V
Panel Cutout Dimensions	13
Board thickness (max.)	4mm
Casing/button Colour	Black/green
Connection	Soldering
Contact Material	Silver alloy
Contact Resistance	≤ 50 mΩ
Dielectric Strength	1500 VAC
Electrical lifespan	200000
Insulation Resistance	≥ 100 MΩ
IP Rating	IP65
Maximum Temperature	+55°C
Min. temperature	-25°C
Plastic free packaging	Plastic-free packaging
Recess depth	12.5mm
Recess Diameter	13mm
Switching Voltage	48V DC
