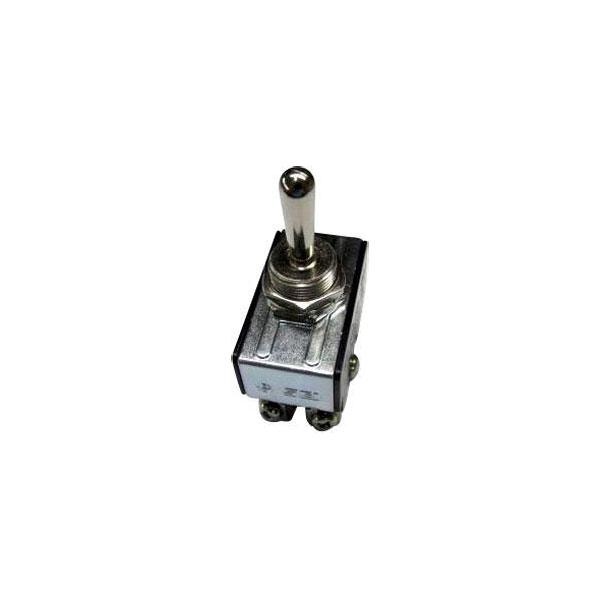

TruComponents 751467 Toggle switch Panel Mount Off/On DPST Screw Terminals

TruComponents
Order Code:

75-1467

Brand: TruComponents MPN: 751467 EAN-13: 4064161298962
Qty Unit Price (Ex VAT)
2+ £3.68
5+ £3.27
10+ £3.00
25+ £2.83
50+ £2.68
100+ £2.58
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,368 in stock, despatched in 4 working days

The TruComponents 751467 Toggle Switch is designed to meet the demands of various electrical applications with its robust and reliable performance. This panel mount switch features a Double Pole Double Throw (DPDT) configuration, providing versatile switching options for your projects. With guide groove for front panel mounting.
Switch Function latch
Current Rating (Amps) 10A
Casing/button colour Metal
Connection Screws
Contact Material Brass nickel plated
Contact Resistance max. 50mΩ
Dielectric Strength 1500 V/AC/60 s
Front panel thickness 4mm
Insulation Resistance min 500 V/DC/100MΩ
Lighting type None
Misc Attribute TC-R13-28F-06
Number of Pins 2
Recess diameter 12.2mm
Switch position 2 x Off/On
Switch/button features Steel lever
Switching Voltage 250V AC
Type Toggle switch
