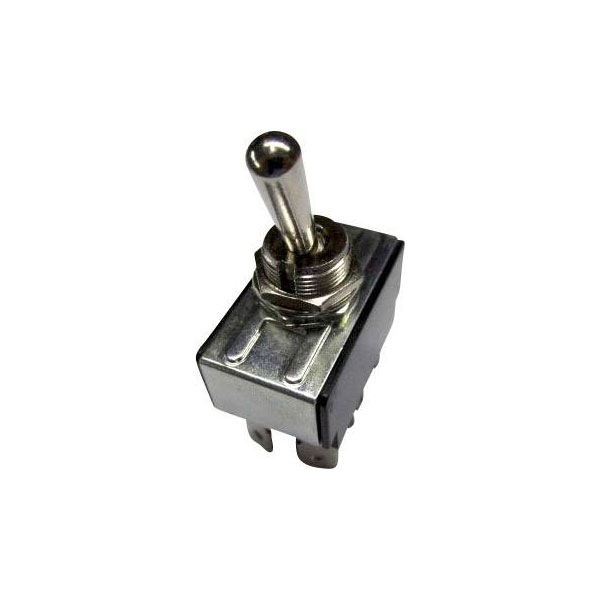

TruComponents 751464 Toggle switch Panel Mount Off/On DPST Quick Connect

The TruComponents 751464 Toggle Switch is designed to meet the demands of various electrical applications with its robust and reliable performance. This panel mount switch features a Double Pole Double Throw (DPDT) configuration, providing versatile switching options for your projects. With guide groove for front panel mounting.

Mounting Type	Panel Mount
Contact Configuration	2 x Off/On
Switch Function	latch
Current Rating (Amps)	10A
Illumination Type	Non-Illuminated
Actuator Colour	Chrome
Actuator Type	Steel lever
Casing/button Colour	Metal
Contact Material	Brass nickel plated
Contact Resistance	max. 50mΩ
Dielectric Strength	1500 V/AC/60 s
Front panel thickness	4mm
Insulation Resistance	min 500 V/DC/100MΩ
Lighting Type	None
Misc Attribute	TC-R13-28F-01
Number of pins	2
Recess Diameter	12.2mm
Switching Voltage	250V AC
Termination Style	Type C CEE 7/16 plug 6.3mm
Type	Toggle switch
