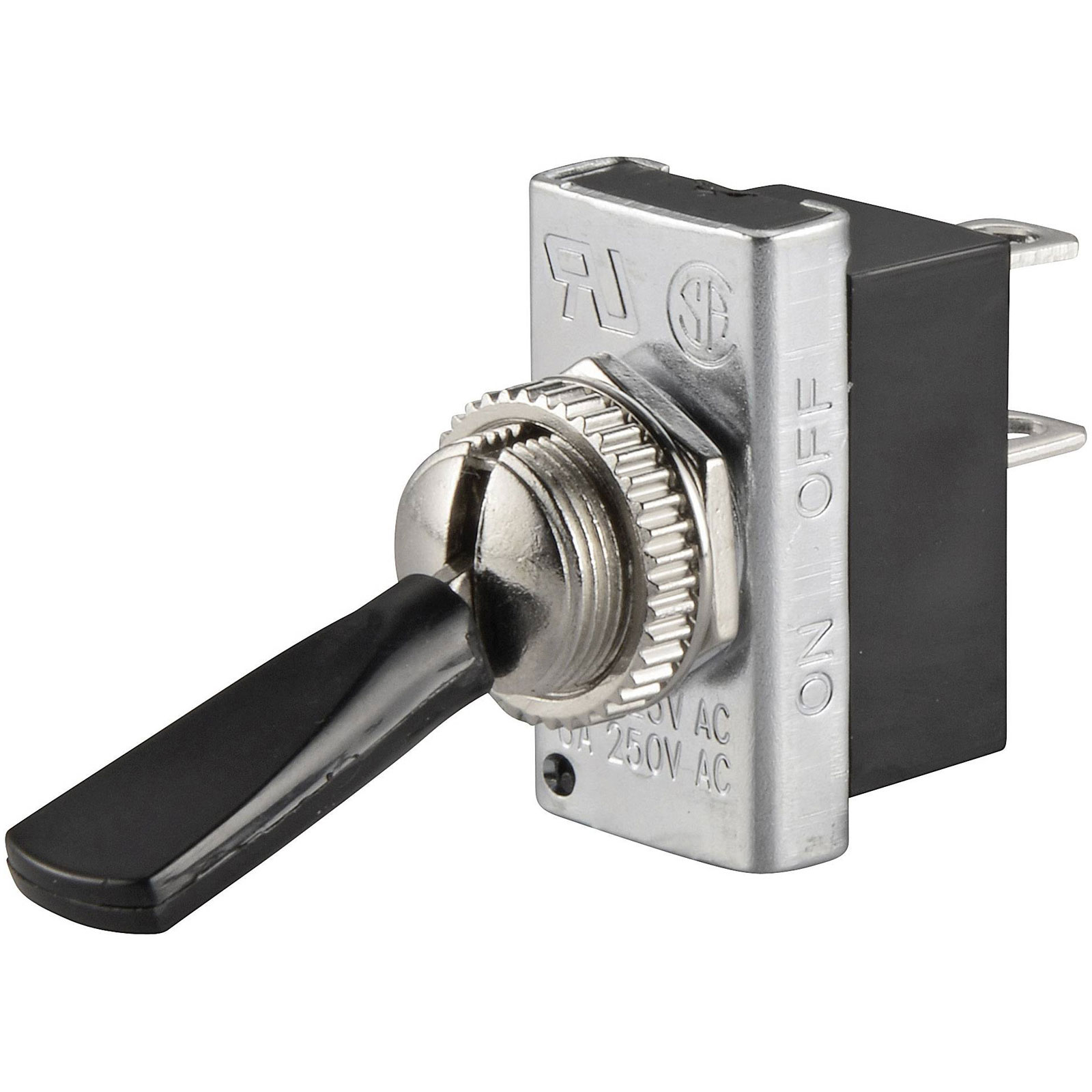

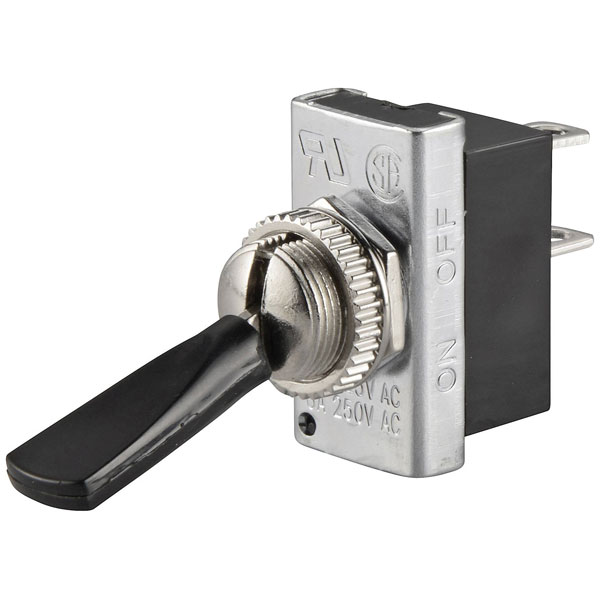

TruComponents 751458 Toggle switch Panel Mount Off/On SPST Solder Tags Lever

TruComponents
Order Code:

75-1458

Brand: TruComponents MPN: 751458 EAN-13: 4064161298870
Qty Unit Price (Ex VAT)
2+ £2.08
5+ £1.85
10+ £1.70
25+ £1.60
50+ £1.52
100+ £1.46
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
452 in stock, despatched in 4 working days

Upgrade your electrical projects with the TruComponents 751458 Toggle Switch. Designed for durability and ease of use, this switch is perfect for a variety of applications. With guide groove for front panel mounting.
Contact Configuration 1 x Off/On
Switch Function latch
Current Rating (Amps) 6A
Actuator Type Plastic lever
Termination Style Solder tag
Casing/button colour Black
Contact Resistance max. 50mΩ
Dielectric Strength 1500 V/AC/60 s
Front panel thickness 6mm
Insulation Resistance min 500 V/DC/100MΩ
Lighting type None
Misc Attribute TC-R13-25A1-05
Number of Poles 1
Recess diameter 12.2mm
Switching Voltage 250V AC
Type Toggle switch
