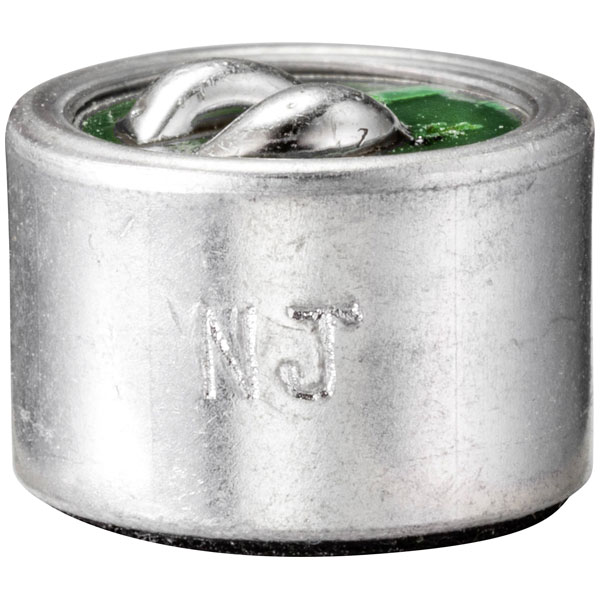

TRU COMPONENTS TC-9202052 Microphone capsule 4.5-10V DC 100Hz-10kHz range

TRU COMPONENTS TC-9202052 is a microphone capsule designed to operate within a voltage range of 4.5 to 10 V DC, supporting a frequency range from 100 Hz to 10 kHz. This microphone capsule is well-suited for applications requiring precise acoustic signal capture, making it ideal for use in hifi audio systems, alarm systems, and model making projects, including scale models where accurate sound reproduction is critical. With a robust design to handle varied applications, the TC-9202052 ensures reliable performance in environments demanding consistent sound capture, thus serving as a versatile component within any signal sounder framework.

Type	TC-9202052
Connection	Print
Content	1
Diameter	9.4mm
Dimensions	(Ø x H) 9.4 mm x 6.5 mm
Frequency Range	100 Hz - 10000 Hz
Height	6.5mm
Impedance	2200Ω
Max. frequency	10000Hz
Max. operating voltage	10V DC
Min. frequency	100Hz
Min. operating voltage	4.5V DC
Operating Voltage	4.5 - 10 V DC
Product Type	Microphone capsule
Sensitivity	-40dB
