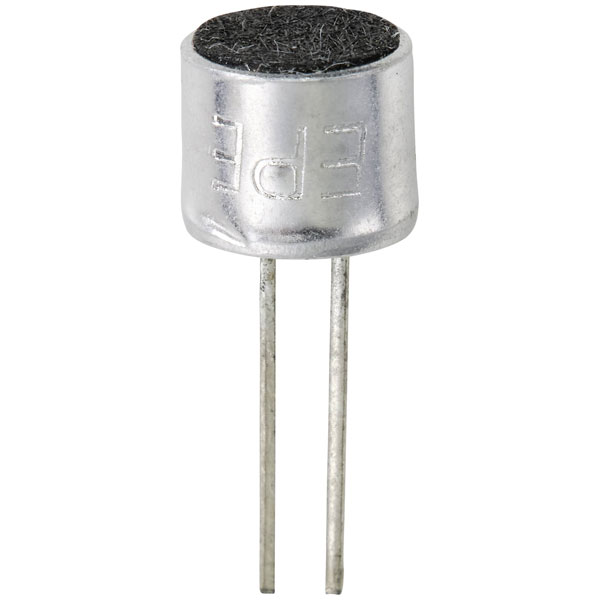

TRU COMPONENTS TC-9202048 Microphone capsule 4.5-10V DC 100Hz-10000Hz

TRU COMPONENTS TC-9202048 is a microphone capsule designed for applications requiring sound detection within a frequency range of 100 Hz to 10000 Hz, operating efficiently between 4.5 V and 10 V DC. This mic capsule is ideal for integration into signal sounders, acoustic signal systems, and hifi audio setups due to its precise sound capture capabilities. It is well-suited for use in alarm systems, providing reliable acoustic signalling, and is also applicable in model making and scale models where accurate sound reproduction is necessary. As a versatile component, the TC-9202048 serves as a fundamental element in various engineering projects requiring detailed sound sensing and processing.

Type	TC-9202048
Connection	Soldering
Content	1
Diameter	6mm
Dimensions	(Ø x H) 6 mm x 5 mm
Frequency Range	100 Hz - 10000 Hz
Height	5mm
Impedance	2200Ω
Max. frequency	10000Hz
Max. operating voltage	10V DC
Min. frequency	100Hz
Min. operating voltage	4.5V DC
Operating Voltage	4.5 - 10 V DC
Product Type	Microphone capsule
Sensitivity	-44dB
