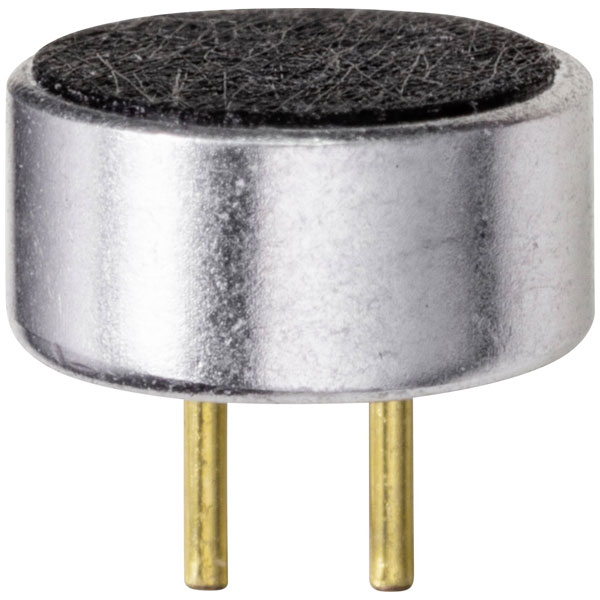

TRU COMPONENTS TC-9202040 Microphone capsule 2-10V DC 100Hz-10000Hz range

TRU COMPONENTS TC-9202040 is a high-quality microphone capsule designed for a range of applications that require precise acoustic signal detection. Operating within a voltage range of 2 to 10 V DC, this microphone capsule delivers performance over a frequency range of 100 Hz to 10,000 Hz, making it suitable for hifi audio systems and alarm systems where clear sound reproduction is crucial. Engineers may also find the capsule advantageous in model making and scale model applications, where compact design and reliable performance are paramount. As a type of microphone, it fulfils the role of a signal sounder, effectively capturing and converting acoustic signals into electrical signals for further audio processing or signalling purposes.

Type	TC-9202040
Connection	Print
Content	1
Diameter	6mm
Dimensions	(Ø x H) 6 mm x 2.7 mm
Frequency Range	100 Hz - 10000 Hz
Height	2.7mm
Impedance	2200Ω
Max. frequency	10000Hz
Max. operating voltage	10V DC
Min. frequency	100Hz
Min. operating voltage	2V DC
Operating Voltage	2 - 10 V DC
Product Type	Microphone capsule
Sensitivity	-44dB
