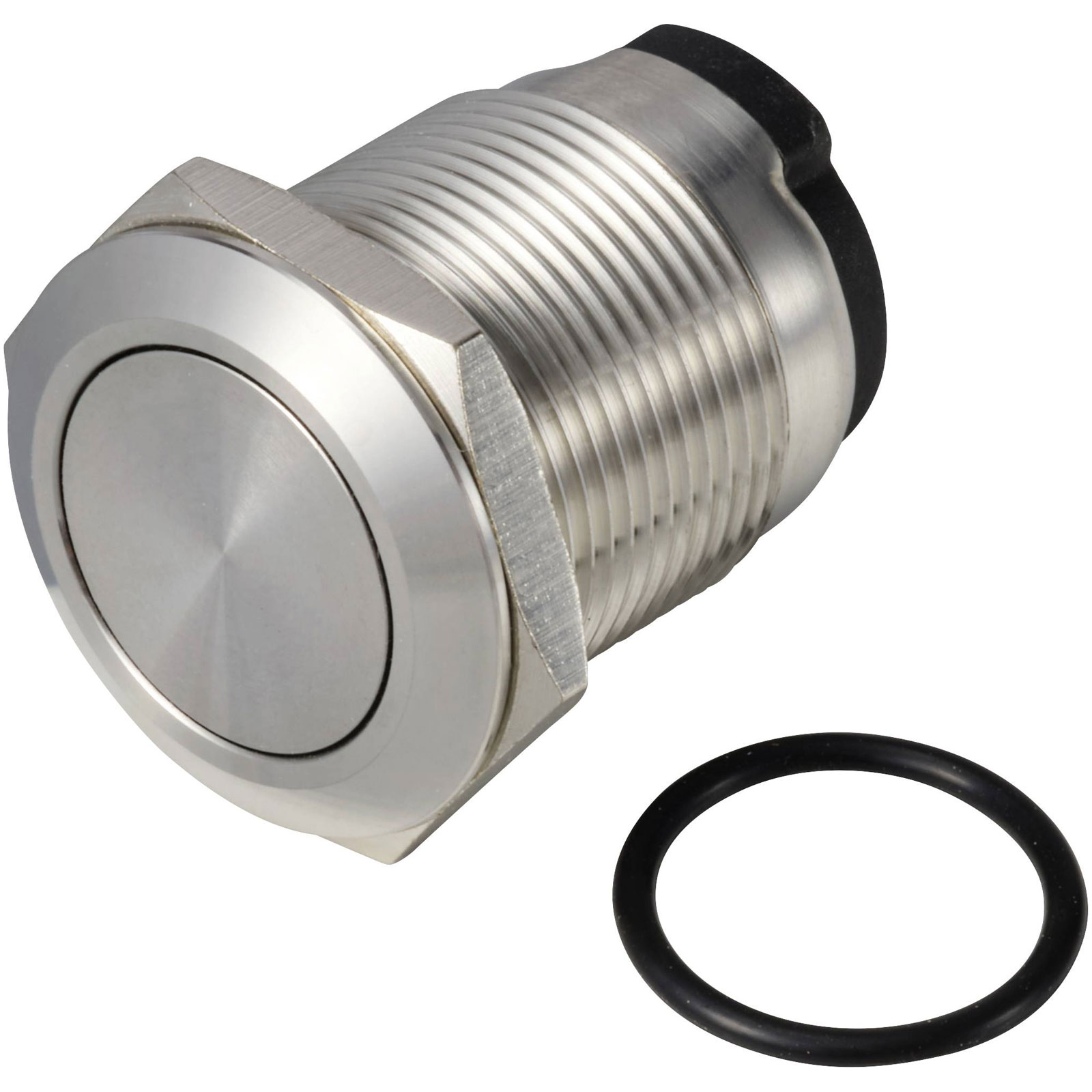

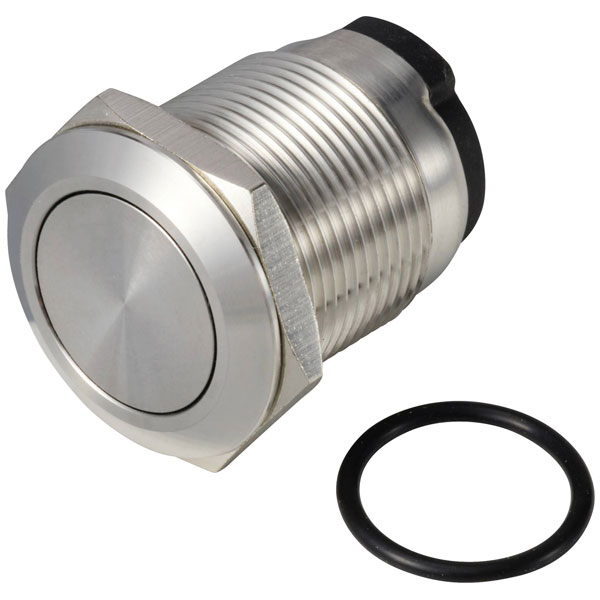

TRU COMPONENTS TC-13224184 Pushbutton 36V IP65 Momentary 2A Off/(On)

TRU COMPONENTS TC-13224184 presents a robust push-button switch designed to meet rigorous operational demands. This momentary switch, identified by the alternate description ONPOW6319F-10/Q/S, is engineered to function with a voltage rating of 36 V DC/AC and a current capacity of 2 A. Offering an Off/(On) configuration, it promises reliable performance in temporary activation scenarios, safeguarded by an IP65 ingress protection rating, which ensures resistance against dust and water ingress. This switch is well-suited for integration into control panels, industrial machinery, and automation systems where resilient yet transient control is required. Its durable construction and precise operation make it an ideal choice for engineers designing systems that demand robust control solutions.

Type	ONPOW6319F-10/Q/S
Contact Configuration	SPNO
Switch Function	Off-(On)
Current Rating	N/A
Mounting	Panel
Illumination	N/A
Panel Cutout Dimensions	N/A
Connection	Quick-connect
Content	1
Dielectric Strength	1,500 V, RMS 50 Hz, 1 min.
Electrical lifespan	50,000 cycles
Functions	momentary
IP Rating	IP65
Lighting Type	None
Material	Stainless steel
Max. temperature	55°C
Min. temperature	-25°C
Product Type	Pushbutton
Recess Diameter	19mm
Switch position	1 x Off/(On)
Switching current (max.)	2A
Switching Voltage	36V DC/AC
