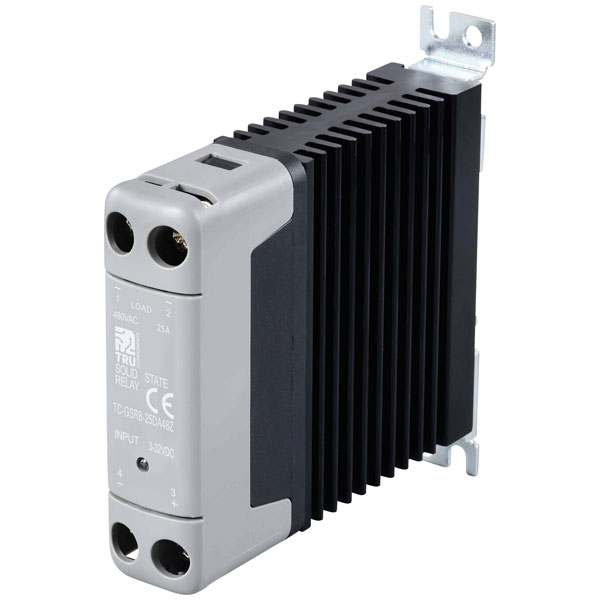

TRU COMPONENTS TC-12705384 SSR TC-GSR8-25DA48Z 25A 480VAC zero crossing relay

TRU COMPONENTS TC-12705384 is an advanced solid state relay designed to enhance electronic switching applications. Featuring the model TC-GSR8-25DA48Z, this device operates with a maximum switching voltage of 480 V AC and supports a load current of up to 25 A, employing zero crossing technology to minimise electrical noise and improve efficiency. It is a semiconductor switch, enabling reliable and rapid operations in various industrial and commercial settings. Ideal for tasks requiring silent and long-lasting switching mechanisms, this SSR can be effectively utilised in applications such as industrial automation, heating systems, and motor control, where precise and efficient electrical control is necessary. The robust construction and zero crossing features of this solid state relay make it a dependable choice for engineers seeking durability and performance in demanding environments.

Type	TC-GSR8-25DA48Z
Length	103mm
Width	22.5mm
Height	100mm
Connection	Screw terminal
Contact Type	1 maker
Content	1
Control current (max.)	20mA
Control voltage (max.)	32V DC
Control voltage (min.)	3V DC
Control voltage range	3 - 32 V DC
Current load (max.)	25A
Max. output current	25A
Max. temperature	80°C
Min. temperature	-30°C
Product Type	SSR
Switching type	Zero crossing
Switching voltage (max.)	480V AC
Switching voltage (min.)	24V AC
Weight	280g
