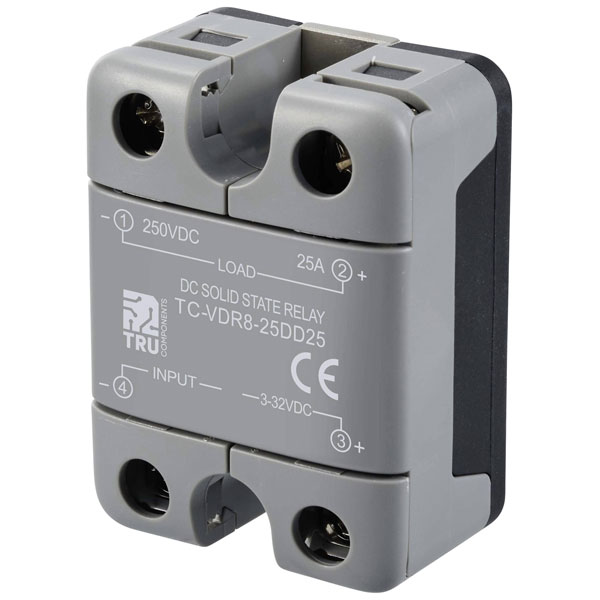

TRU COMPONENTS TC-12705368 Solid State Relay 25A 250V DC Switching

TRU COMPONENTS TC-12705368 is a solid state relay designed for reliable electronic switching applications. This component, also referred to as the TC-VDR8-25DD25, is capable of managing a maximum switching capacity of 25 A at up to 250 V DC. Utilising semiconductor technology, this relay features a zero-crossing switch, which enhances performance by reducing electrical noise and minimising potential transients during the switching process. As a result, it is well-suited for use in industrial automation systems, motor control circuits, and other applications that require robust electronic switching without the mechanical wear associated with traditional electromechanical relays. The TC-12705368 provides engineers with a dependable solution for precise control in demanding environments.

Type	TC-VDR8-25DD25
Input Voltage	250V
Contact Configuration	1NO
Switching Current	25A
Length	59.4mm
Width	44.5mm
Height	29.1mm
Connection	Screw terminal
Content	1
Control Current (max.)	30mA
Control voltage (max.)	32V DC
Control voltage (min.)	3V DC
Control voltage range	3 - 32 V DC
Max. output current	25A
Maximum Temperature	80°C
Min. temperature	-30°C
Product Type	SSR
Switching type	DC circuit
Switching voltage (max.)	250V DC
Switching voltage (min.)	12V DC
Weight	120g
