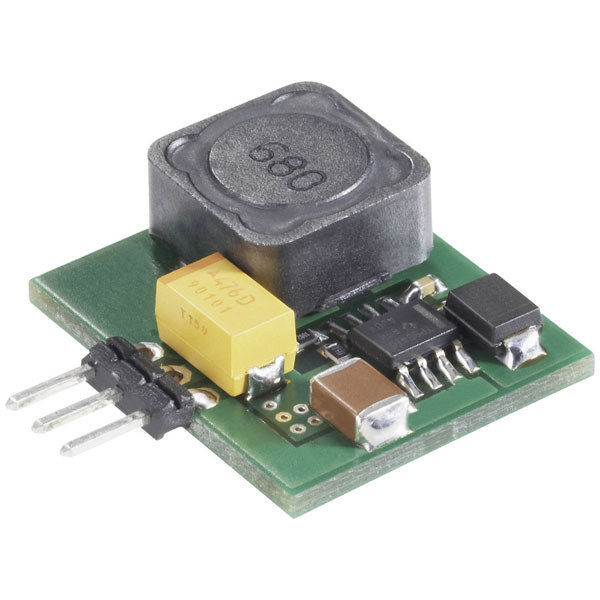

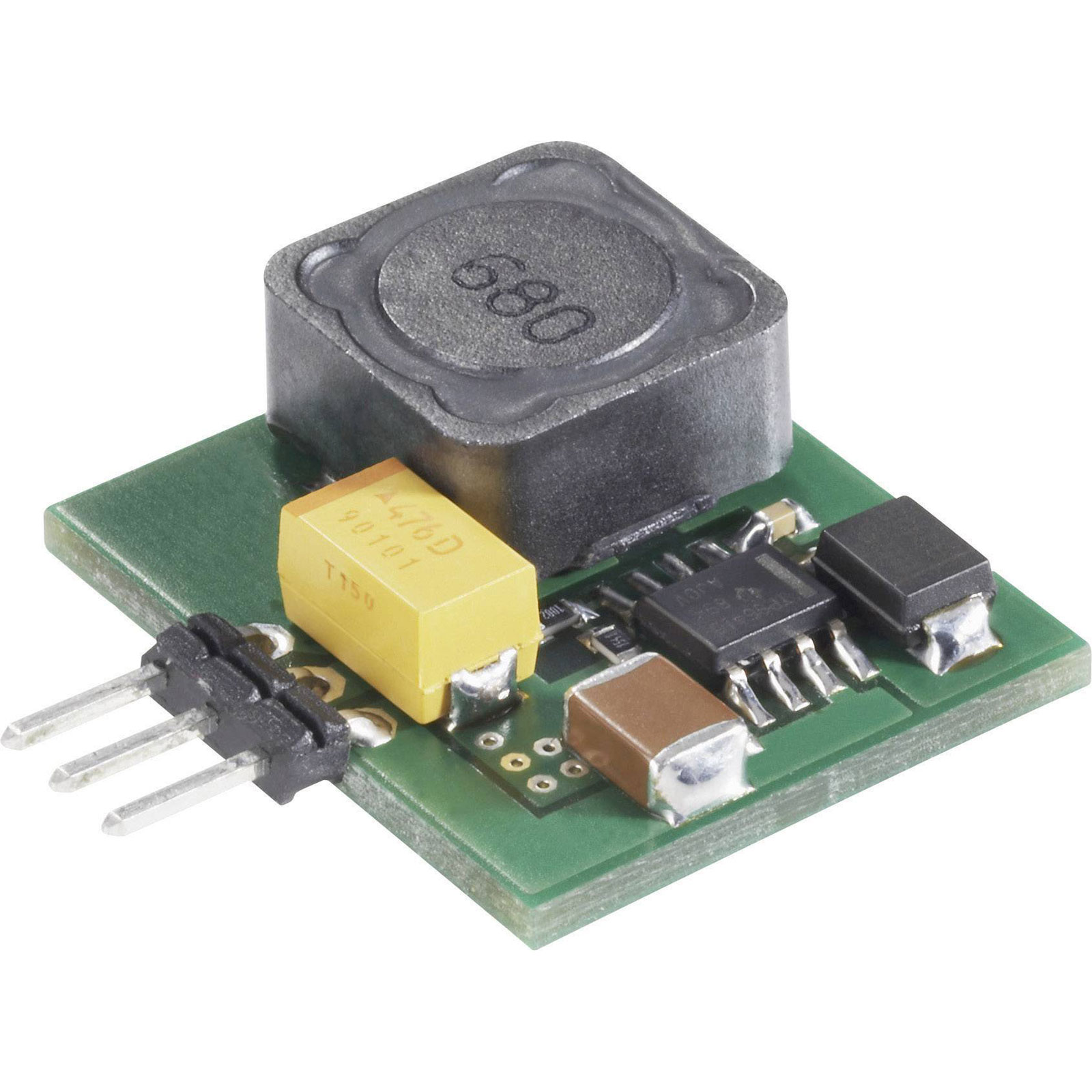

TRU COMPONENTS 1566414 Voltage regulator 3V3 Upright Positive 1 A

TruComponents 1566414, also known as the TruComponents 1566414, is a voltage regulator designed to provide a fixed output of 3.3 volts in an upright position with a maximum output current of 1 ampere. This product ensures stable voltage regulation essential for protecting sensitive electronic components from voltage fluctuations. Its small form factor and reliable performance make it well-suited for a wide range of engineering applications, including power supply circuits, embedded systems, and other electronic projects that require a consistent 3.3 V power source. With its robust design and high efficiency, the 1566414 is an excellent choice for maintaining circuit stability in various industrial and consumer electronic applications.

Type	W78-3V3
Enclosure	Upright
Functions	Buck
Input voltage (max.)	34V
Input Voltage (min.)	5.5V
Mounting Type	Through-hole
No. of outputs	1
Operating temperature (max.)	+125°C
Operating temperature (min.)	-40°C
Output Configuration	Positive
Output Type	Adjustable
Output voltage (min.)	3.3V
Power Output	1A
Product Type	Voltage regulator - DC/DC voltage regulator
Switching frequency (min.)	600kHz
