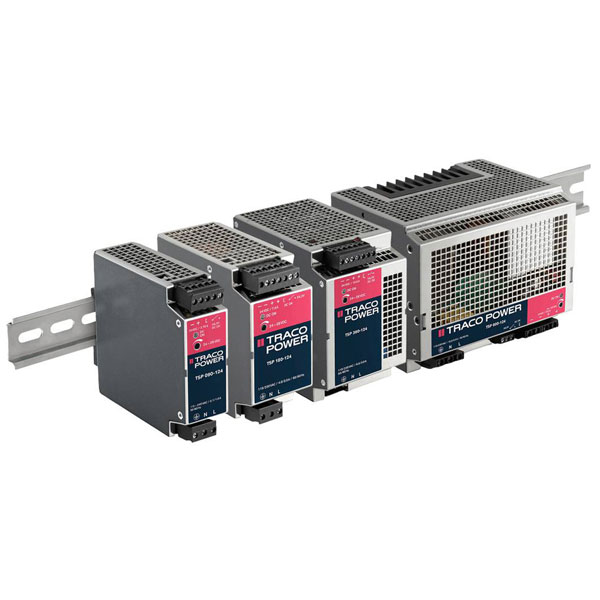

TracoPower TSP 140-112 EX Rail PSU 144W 12000mA 1 Output DIN Rail

The TracoPower TSP 140-112 EX is a rail mounted power supply unit with a single output of 12000 mA and 144 W. Designed for industrial applications, it attaches easily to DIN rails for convenient installation. This power supply is ideal for ensuring reliable power delivery in demanding environments.

Type	Rail mounted PSU (DIN)
Nominal value output current 1	12A
Number of Outputs	1
Power Rating	144W
Depth	115.0mm
Dimensions (L x W x H)	115.0 x 54.0 x 110.0mm
Height	110.0mm
Max. output current 1	12000mA
Maximum input voltage [AC]	264V
Maximum Operating Temperature	70°C
Maximum Temperature	70°C
Min. operating temperature (derating)	40°C
Min. temperature	-25°C
Minimum Input Voltage [AC]	85V
Nominal value output voltage 1 [DC]	+12.0V
Operating temperature (min.)	-25°C
Type of electric connection	Screw terminal
Weight	700g
Width	54.0mm
