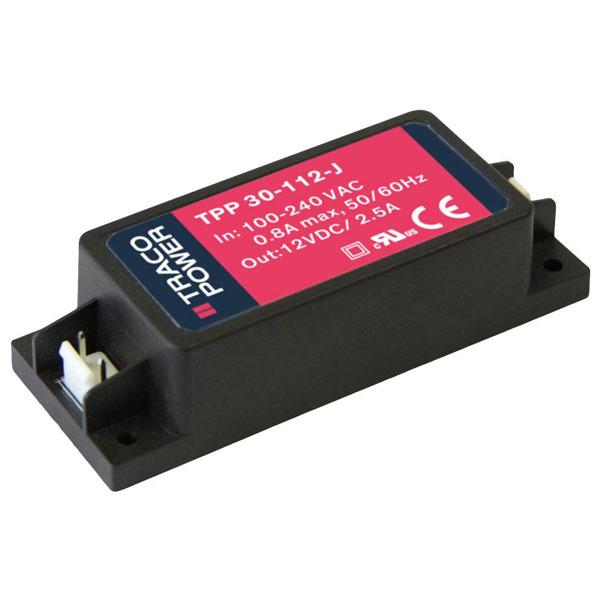

TracoPower TPP 30-112-J SMPSU 12V 2.5A 30W Reliable Power Supply

TracoPower
Order Code:

07-8345

Brand: TracoPower MPN: TPP 30-112-J
Qty Unit Price (Ex VAT)
1+ £52.12
5+ £50.55
10+ £49.00
25+ £46.91
50+ £44.82
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

The TracoPower TPP 30-112-J is a 12 V DC, 2.5 A, 30 W PCB mount power supply unit characterised by its compact design and efficient performance. Equipped with solder lugs, it is suitable for printed circuit board applications, providing reliable power solutions in industrial and commercial settings. This SMPSU is ideal for equipping circuit boards that require stable and robust power integration.
Connection Connector
Dim (L x W x H) 100.3 x 38.1 x 25.4 mm
Height 25.4mm
Input voltage (max.) 264V AC
Length 100.3mm
Max. operating temperature (derating) 60°C
Max. output current 2.5A
Max. temperature 85°C
Min. input voltage 85V AC
Min. temperature -40°C
Misc Attribute 2 closed
Number of Outputs 1
Operating temperature (max.) 85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 2.5A
Output current (min.) 0mA
Output voltage (max.) 12V DC
Output voltage (min.) 12V DC
Power 30W
Type SMPSU
Width 38.1mm
