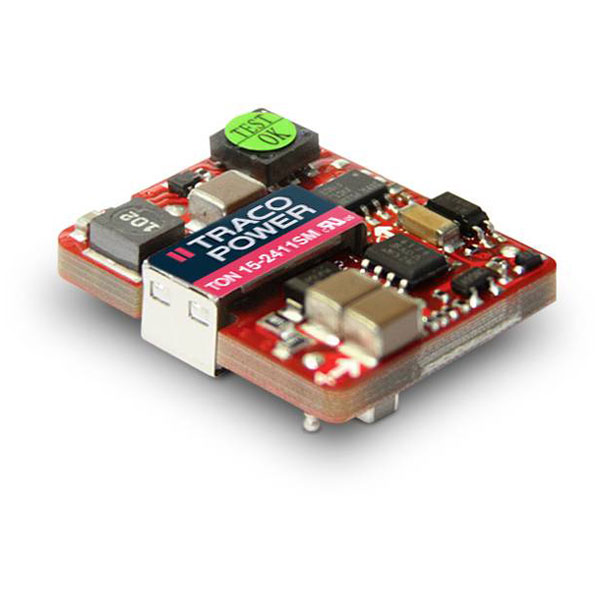

TracoPower TON 15-2410SM Compact 15W DC/DC Converter 24V to 3.3V 3.5A SMD

TracoPower
Order Code:

07-8310

Brand: TracoPower MPN: TON 15-2410SM
Qty Unit Price (Ex VAT)
1+ £31.90
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 03/02/2026

TracoPower manufactures the TON 15-2410SM DC/DC converter, offering a 24 V DC input and a 3.3 V DC output at 3.5 A with a power rating of 15 W. This single-output converter is ideal for applications requiring efficient voltage conversion and regulation. Typical uses include industrial automation, telecommunications, and distributed power systems.
Output Voltage 3.3V DC
Input Voltage Range 36V DC
Output Current 3.5A
Number of Outputs 1
Connection Solder pins
Dim (L x W x H) 23.88 x 27.94 x 13.7 mm
Efficiency (max.) 86%
Height 13.7mm
Insulation Voltage 2250V DC
Length 23.88mm
Max. output current 3.5A
Min. input voltage 18V DC
Misc Attribute 1 Sound 15-2410 SM
Nominal Voltage 24V DC
Operating temperature (max.) 85°C
Operating temperature (min.) -40°C
Power 15W
Type DC/DC converter (print)
Width 27.94mm
