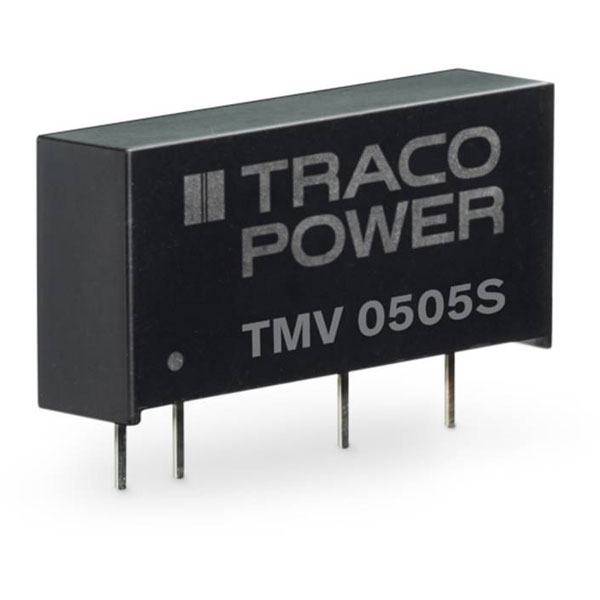

TracoPower TMV 2405S DC/DC Converter 24V DC to 5V DC 2W 1 Output

TracoPower
Order Code:

07-8307

Brand: TracoPower MPN: TMV 2405S
Qty Unit Price (Ex VAT)
1+ £5.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

The TracoPower TMV 2405S is a DC/DC converter providing 24 V DC input to 5 V DC output, with a maximum output current of 200 mA and power of 2 W. Manufactured by TracoPower, it is designed for single-output applications where compact and efficient power conversion is necessary. This part is typically used in telecommunications, industrial controls, and distributed power applications.
Connection Solder pins
Dim (L x W x H) 19.5 x 13.4 x 7.1 mm
Efficiency (max.) 71%
Enclosure SIL 7
Height 7.1mm
Input voltage (max.) 26.4V DC
Insulation Voltage 3000V DC
Length 19.5mm
Max. output current 200mA
Min. input voltage 21.6V DC
Nominal Voltage 24V DC
Number of Outputs 1
Operating temperature (max.) 85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 200mA
Output voltage (max.) 5V DC
Output voltage (min.) 5V DC
Output voltages 5V DC
Power 2W
Type DC/DC converter (print)
Width 13.4mm
