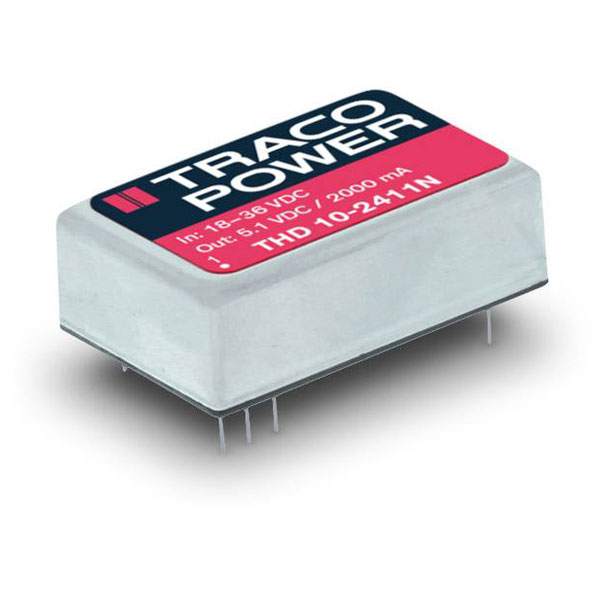

TracoPower THD 10-2411N DC/DC Converter 24V to 5.1V 2A 10W 1 Output

TracoPower
Order Code:

07-8201

Brand: TracoPower MPN: THD 10-2411N
Qty Unit Price (Ex VAT)
1+ £22.68
5+ £22.00
10+ £21.32
25+ £20.41
50+ £19.51
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 25/01/2026

TracoPower's THD 10-2411N is a DC/DC converter that transforms 24 V DC to 5.1 V DC with a current output of 2 A and 10 W power handling. This single-output converter is ideal for applications requiring reliable power conversion in industrial or telecommunications settings. The compact design ensures easy integration into existing systems.
Connection Solder pins
Dim (L x W x H) 31.8 x 20.3 x 14.3 mm
Efficiency (max.) 85%
Height 14.3mm
Input voltage (max.) 36V DC
Insulation Voltage 1500V DC
Length 31.8mm
Max. output current 2A
Min. input voltage 18V DC
Misc Attribute 1 THD 10-2411 N
Nominal Voltage 24V DC
Number of Outputs 1
Operating temperature (max.) 85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 2A
Output voltage (max.) 5.1V DC
Output voltage (min.) 5.1V DC
Output voltages 5.1V DC
Power 10W
Type DC/DC converter (print)
Width 20.3mm
