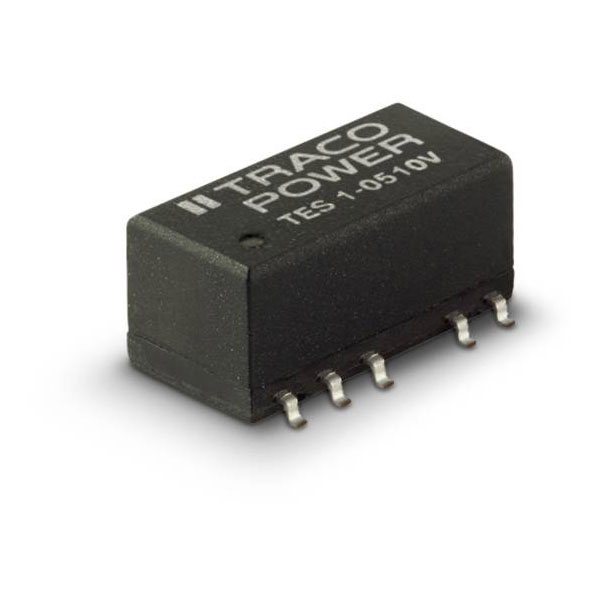

TracoPower TES 1-2423V DC/DC Converter SMD 24V 15V ±15V 1W 34mA 2 Outputs

TracoPower
Standard range
Order Code:

07-8185

Brand: TracoPower MPN: TES 1-2423V
Qty Unit Price (Ex VAT)
1+ £8.71
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
9 in stock, despatched in 4 working days

The TracoPower TES 1-2423V is a surface-mount DC/DC converter with a 24 V DC input and dual 15 V and -15 V DC outputs. It delivers a power output of 1 W and handles a current of 34 mA, suitable for various electronic applications requiring efficient power management. Ideal for embedded systems and telecommunications, this compact converter is designed to reliably power sensitive circuitry from a stable supply.
Type DC/DC converter (SMD)
Connection SMD
Dim (L x W x H) 16.3 x 8 x 8 mm
Efficiency (max.) 79%
Enclosure SMD
Height 8mm
Input voltage (max.) 26.4V DC
Insulation voltage 3000V DC
Length 16.3mm
Max. output current 34mA
Min. input voltage 21.6V DC
Misc Attribute 1 TES 1-2423 V
Misc Attribute 2 TES 1-2423V
No. of outputs 2
Nominal voltage 24V DC
Operating temperature (max.) 85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 34mA
Power 1W
Weight 2g
Width 8mm
