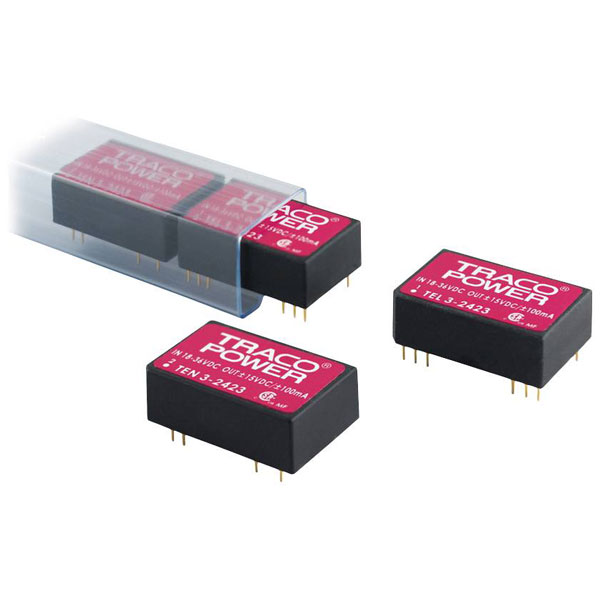

TracoPower TEN 3-2423 DC/DC Converter 24V to ±15V Dual Output 3W

TracoPower
Standard range
Order Code:

07-8158

Brand: TracoPower MPN: TEN 3-2423
Qty Was Unit Price (Ex VAT)
1+ £16.36   £15.77
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The TracoPower TEN 3-2423 DC/DC converter is a compact and efficient direct current converter designed for converting 24 V DC to dual outputs of 15 V DC and -15 V DC at 100 mA each, with a total power rating of 3 watts. This converter is ideal for powering dual polarity analogue circuits or isolated operational amplifiers. Its reliability and small footprint make it suitable for use in industrial automation and control panels.
Type DC/DC converter (print)
Connection Solder pins
Dim (L x W x H) 31.8 x 14.7 x 20.3 mm
Efficiency (max.) 82%
Height 20.3mm
Input voltage (max.) 36V DC
Insulation voltage 1500V DC
Length 31.8mm
Max. output current 100mA
Min. input voltage 18V DC
Misc Attribute TEN 3-2423
No. of outputs 2
Nominal voltage 24V DC
Operating temperature (max.) 85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 100mA
Power 3W
Weight 12g
Width 14.7mm
