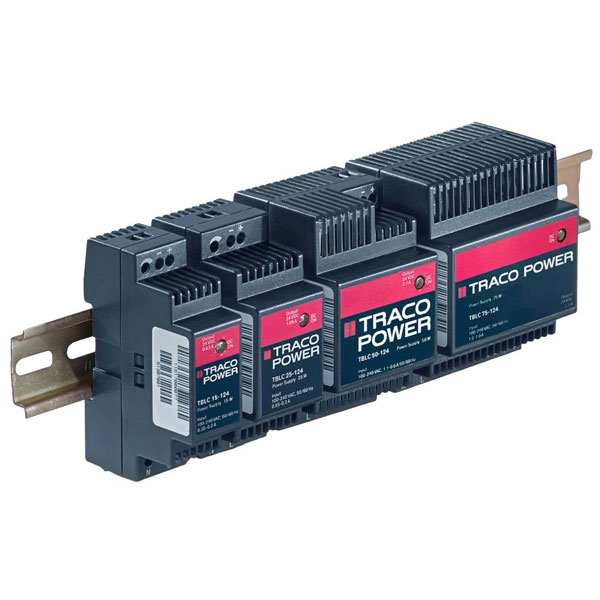

TracoPower TBLC 90-124 SMPSU 28V DC 3.75A 90W DIN Rail Compatible

TracoPower
Order Code:

07-8127

Brand: TracoPower MPN: TBLC 90-124
Qty Unit Price (Ex VAT)
1+ £73.03
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

The TracoPower TBLC 90-124 is a PCB-mounted power supply unit providing 28 V DC and a current of 3.75 A, delivering a total power output of 90 W. Designed as a switch mode power supply unit (SMPSU) with solder lugs, it is suitable for integration into printed circuit boards. This power supply is ideal for applications requiring reliable power solutions in compact electronic devices.
Number of Outputs 1
Output Power Max 90W
Output Voltage 24V DC
Output Current 0mA
Dimensions (L x W x H) 59.5 x 90 x 89.5 mm
Connection Screw terminal
Height 89.5mm
Input Voltage 264V AC
Length 59.5mm
Max. operating temperature (derating) 55°C
Max. output current 3.75A
Min. input voltage 85V AC
Misc Attribute 2 closed
Operating temperature (max.) 70°C
Operating temperature (min.) -25°C
Type SMPSU
Width 90mm
