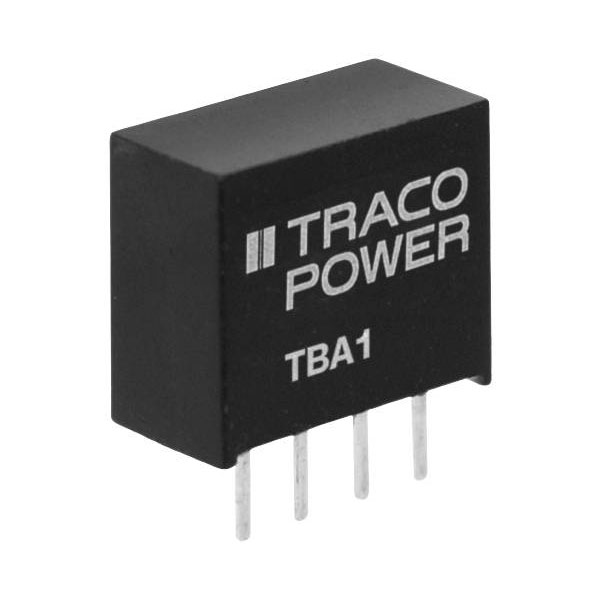

TracoPower TBA 1-0513 DC/DC converter 65mA 1W 1 output

TracoPower TBA 1-0513 is a reliable DC-DC converter designed to offer efficient power conversion with a single output. This 1-watt unit delivers a stable current of 65 mA, making it suitable for diverse applications requiring precise power regulation. Engineered for use in printed circuit board integration, the TBA 1-0513 provides dependable conversion for systems needing isolation from direct current input supply variations. Ideal for telecommunications, industrial controls, and instrumentation applications, this converter ensures robust performance across various electronic environments. Its compact construction facilitates easy incorporation into existing systems where space is a constraint, maintaining functionality without compromising on quality.

Power Rating	1W
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 11.70 x 6 x 9.70 mm
Efficiency (max.)	82%
Height	9.70mm
Input voltage (max.)	5.50V DC
Insulation Voltage	1500V DC
Length	11.70mm
Max. output current	65mA
Min. input voltage	4.5V DC
No. of outputs	1
Operating temperature (max.)	95°C
Operating temperature (min.)	-40°C
Output current (max.) - rounded	65mA
Output voltage (max.)	15.0V DC
Output voltage (min.)	15.0V DC
Power	1W
Product Type	DC/DC converter (print)
Type	TBA 1
Weight	1.60g
Width	6mm
