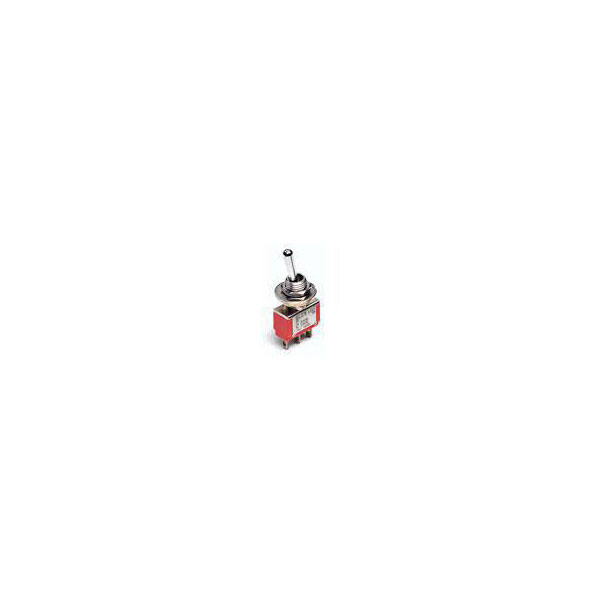

The TE Connectivity 1-1825137-6 is a single pole double throw toggle switch with an on-off-on function.
It features reliable metal construction and a long mechanical life.
Suitable for applications requiring simple electronic circuit control, such as in consumer electronics or industrial equipment.
The part is designed for easy integration with various devices needing manual operation.
| Contact Configuration |
SPDT |
| Switch Function |
On-Off-On |
| Current Rating (Amps) |
5A |
| Illumination Type |
Non-Illuminated, Illuminated |
| Actuator Colour |
Chrome |
| Actuator Length |
10.41mm |
| Actuator Material |
Brass |
| Actuator Type |
Standard Round |
| Contact Base Material |
Copper |
| Contact Current Rating |
5a |
| Contact Material |
Copper |
| Contact Plating |
Silver |
| Current Rating |
5a |
| DC Rated Voltage |
28v |
| Dielectric Withstanding Voltage (Max) |
1000 |
| Electrical Life |
6000Cycles |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-1 |
| Illumination Colour |
Non-Illuminated |
| Insulation Resistance |
1000 |
| Max Voltage Rating (AC) |
250v |
| Max Voltage Rating (DC) |
28v |
| Maximum Operating Temperature |
85°C |
| Minimum Operating Temperature |
-30°C |
| Misc Attribute |
TE AMP Toggle Pushbutton and Rocker Switches |
| Mount |
Through Hole |
| Number of Positions |
3 |
| Operating Voltage |
28 |
| Orientation |
Straight |
| Package/Case |
120 |
| Packaging |
Bulk |
| Packaging Type |
Bag |
| Product Orientation |
Vertical |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
Yes (With) |
| Series |
Gemini A |
| Termination |
PC Pins |
| Throw Configuration |
SPDT |
| Type |
Toggle Switches |
| UL Flammability Rating |
UL 94V-1 |
| Voltage Rating (AC) |
125v |
