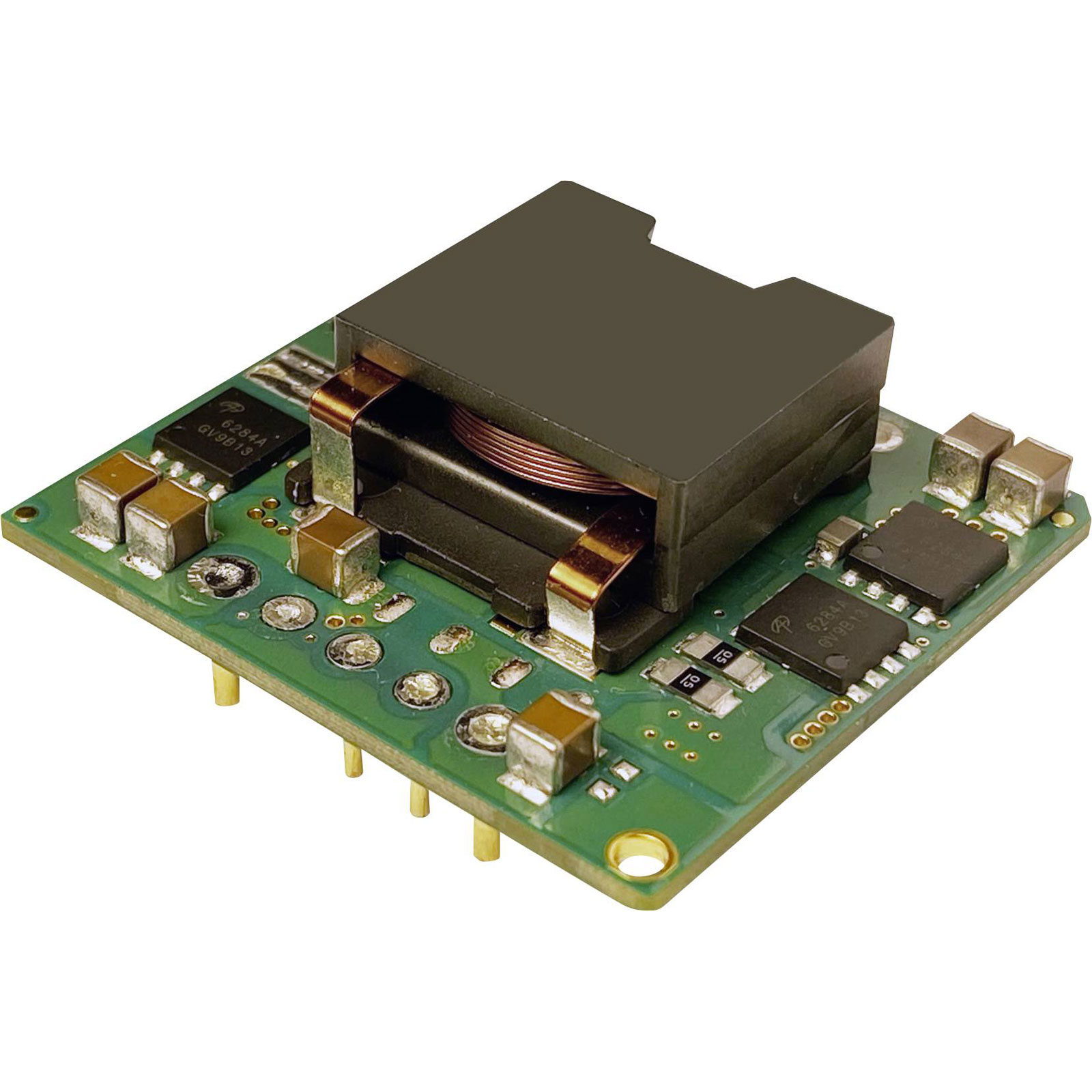

TDK-Lambda i7C Series DC/DC Converter 12.5A 300W 9.6-48V Output

TDK-Lambda
Order Code:

10-7623

Brand: TDK-Lambda MPN: i7C4W012A050V-002-R EAN-13: 2050006583173
Qty Was Unit Price (Ex VAT)
1+ £55.84 £51.73
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
25 available to back orderBack-order availability date - 12/04/2026

The TDK-Lambda i7C4W012A050V-002-R is a DC/DC converter featuring a 12.5 A current rating and 300 W power capacity, suitable for efficient power conversion applications. This device is commonly used in telecommunications, industrial, and medical equipment, where reliable power management is crucial. Its compact design and high efficiency make it ideal for space-constrained environments.
Output Voltage 5V DC
Input Voltage Range 53V
Power Rating 300 W
Output Current 12.5A
Dim (L x W x H) 36.8 x 34 x 12.2 mm
Efficiency (max.) 97%
Height 12.2mm
Industry Standard Size 1/16 brick size
Input Voltage Range[DC] / Vdc 9 to 53
Isolation Non-isolated
Length 36.8mm
Max. output current 12.5A
Maximum Output Current / A 12.5
Maximum Output Power / W 300,PCB mount, 300W, 5 to 28V
Min. input voltage 9V
Nominal Input Voltage[DC] / Vdc 24/48,Non-Isolated, Step-down/Step-down
Number of Outputs 1.0
Operating temperature (max.) 125°C
Operating temperature (min.) -55°C
Option Power good signal Frequency synchronization Output current monitor
Output Voltage Range[DC] / Vdc 5 to 28
Package / Mounting PCB mount
Power 300W
Series i7C,Power Supplies, Sources and Loads
Terminal Style DC-DC Converters,Through Hole
Type DC/DC converter
Width 34mm
