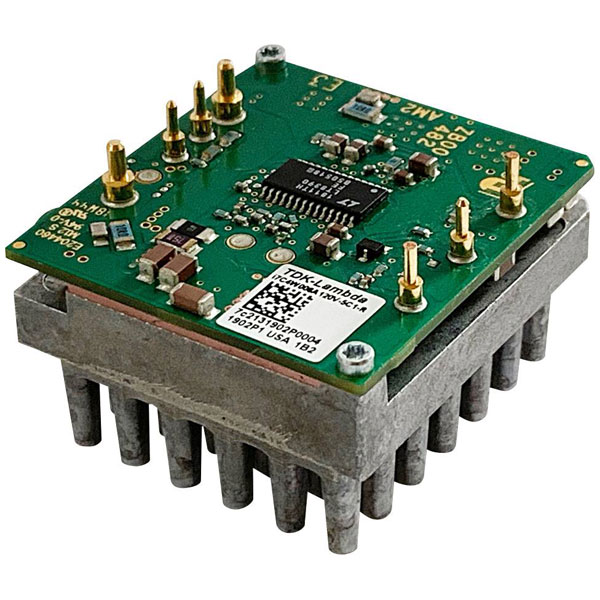

TDK-Lambda i7C i7C4W012A050V-0F1-R DC/DC Converter 12.5A 300W 9.6-48V Output

TDK-Lambda
Order Code:

10-7626

Brand: TDK-Lambda MPN: i7C4W012A050V-0F1-R EAN-13: 2050006583203
Qty Unit Price (Ex VAT)
1+ £60.78
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 11 days

The TDK-Lambda i7C4W012A050V-0F1-R is a DC/DC converter that delivers 300 W of power with a current output of 12.5 A. Designed for efficient power conversion, this unit is ideal for applications requiring stability and reliability in power supply. Typical uses include industrial, telecommunications, and medical equipment where precise voltage regulation is critical.
Output Voltage 5V DC
Input Voltage Range 53V
Power Rating 300 W
Output Current 12.5A
Dim (L x W x H) 36.8 x 34 x 24.9 mm
Efficiency (max.) 97%
Height 24.9mm
Industry Standard Size 1/16 brick size
Input Voltage Range[DC] / Vdc 9 to 53
Isolation Non-isolated
Length 36.8mm
Max. output current 12.5A
Maximum Output Current / A 12.5
Maximum Output Power / W 300,PCB mount, 300W, 5 to 28V
Min. input voltage 9V
Nominal Input Voltage[DC] / Vdc 24/48,Non-Isolated, Step-down/Step-down
Number of Outputs 1.0
Operating temperature (max.) 125°C
Operating temperature (min.) -55°C
Option With heatsink
Output Voltage Range[DC] / Vdc 5 to 28
Package / Mounting PCB mount
Power 300W
Series i7C,Power Supplies, Sources and Loads
Terminal Style DC-DC Converters,Through Hole
Type DC/DC converter
Width 34mm
