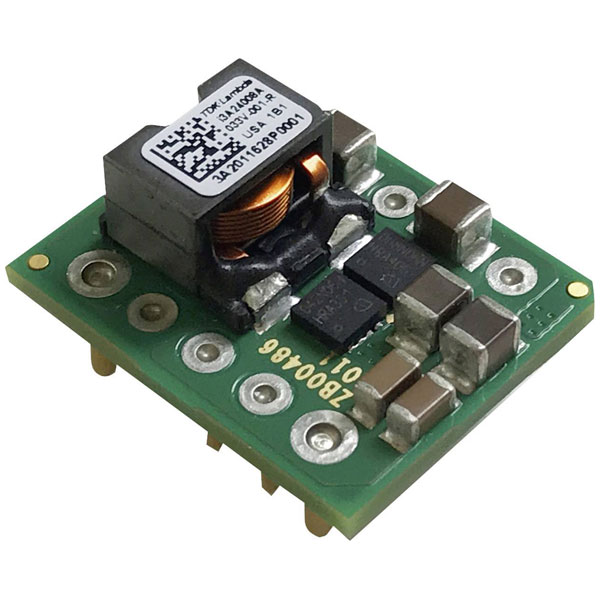

TDK-Lambda i3A i3A4W008A033V-001-R DC/DC Converter 8A 100W 98% Efficiency

TDK-Lambda
Order Code:

10-7608

Brand: TDK-Lambda MPN: i3A4W008A033V-001-R EAN-13: 2050006495643
Qty Unit Price (Ex VAT)
1+ £29.07
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
69 available to back orderBack-order availability date - 12/04/2026

The TDK-Lambda i3A4W008A033V-001-R is a DC/DC converter capable of delivering up to 8 A and 100 W. It is typically used for supplying power in industrial, telecommunications, or computer systems. This direct current converter is designed for efficient power management and flexibility in demanding applications.
Output Voltage 3.3V DC
Input Voltage Range 53V
Power Rating 100W
Output Current 8A
Connection Print
Dim (L x W x H) 19.1 x 23.4 x 9.6 mm
Efficiency (max.) 96.5%
Height 9.6mm
Industry Standard Size 1/32 brick size
Input Voltage Range[DC] / Vdc 9 to 53
Isolation Non-isolated
Length 19.1mm
Max. output current 8A
Maximum Output Current / A 8
Maximum Output Power / W 100
Min. input voltage 9V
Nominal Input Voltage[DC] / Vdc 2024-12-01 00:00:00
Number of Outputs 1.0
Operating temperature (max.) +125°C
Operating temperature (min.) -40°C
Output Voltage Range[DC] / Vdc 3.3 to 16.5
Package / Mounting PCB mount
Power 100W
Series i3A
Terminal Style DIP
Type DC/DC converter
Width 23.4mm
