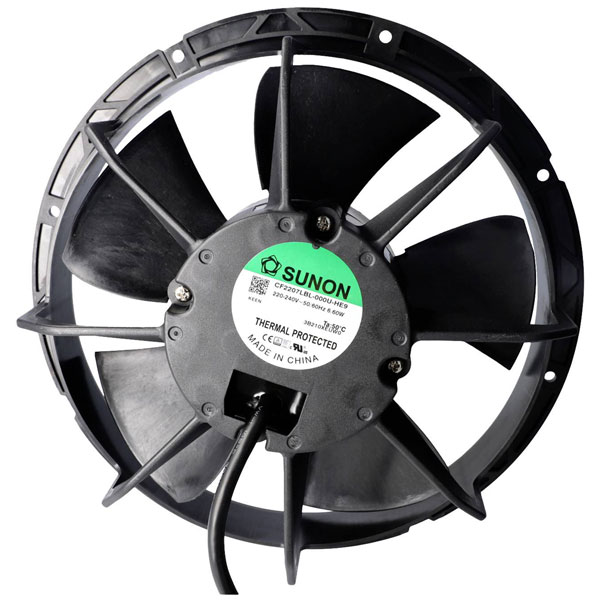

Sunon CF2207LBL-000U-HB9 Axial Fan 230V AC 315.93m³/h 250x77.4mm

The Sunon CF2207LBL-000U-HB9 axial fan is a durable cooling solution designed for industrial applications, operating at 230 V AC with an airflow capacity of 315.93 m³/h. Measuring 250 mm in diameter and 77.4 mm in height, this fan is ideal for maintaining optimal temperatures in electronic enclosures and machinery. Its robust design ensures reliable performance in demanding environments, making it suitable for commercial and industrial cooling.

Type	Axial fan
Voltage	180 - 250 V AC
Dimensions	(Ø x H) 250 mm x 77.4 mm
Air Flow	315.93m³/h
Bearing Type	Ball Bearing
Noise	29.9dB
Power Rating	0.038A
RPM	950 U/min
(Ø)	250mm
Colour	Black
Connection	Braid
Height	77.4mm
Material	Thermoplastic
Max. operating voltage	250V AC
Max. temperature	50°C
Min. operating voltage	180V AC
Min. temperature	-40°C
Pressure (max.)	39.84 Pa
Weight	1.763g
