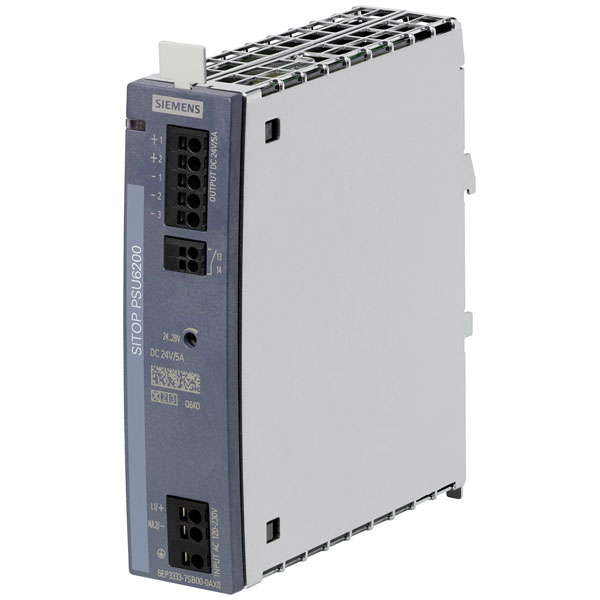

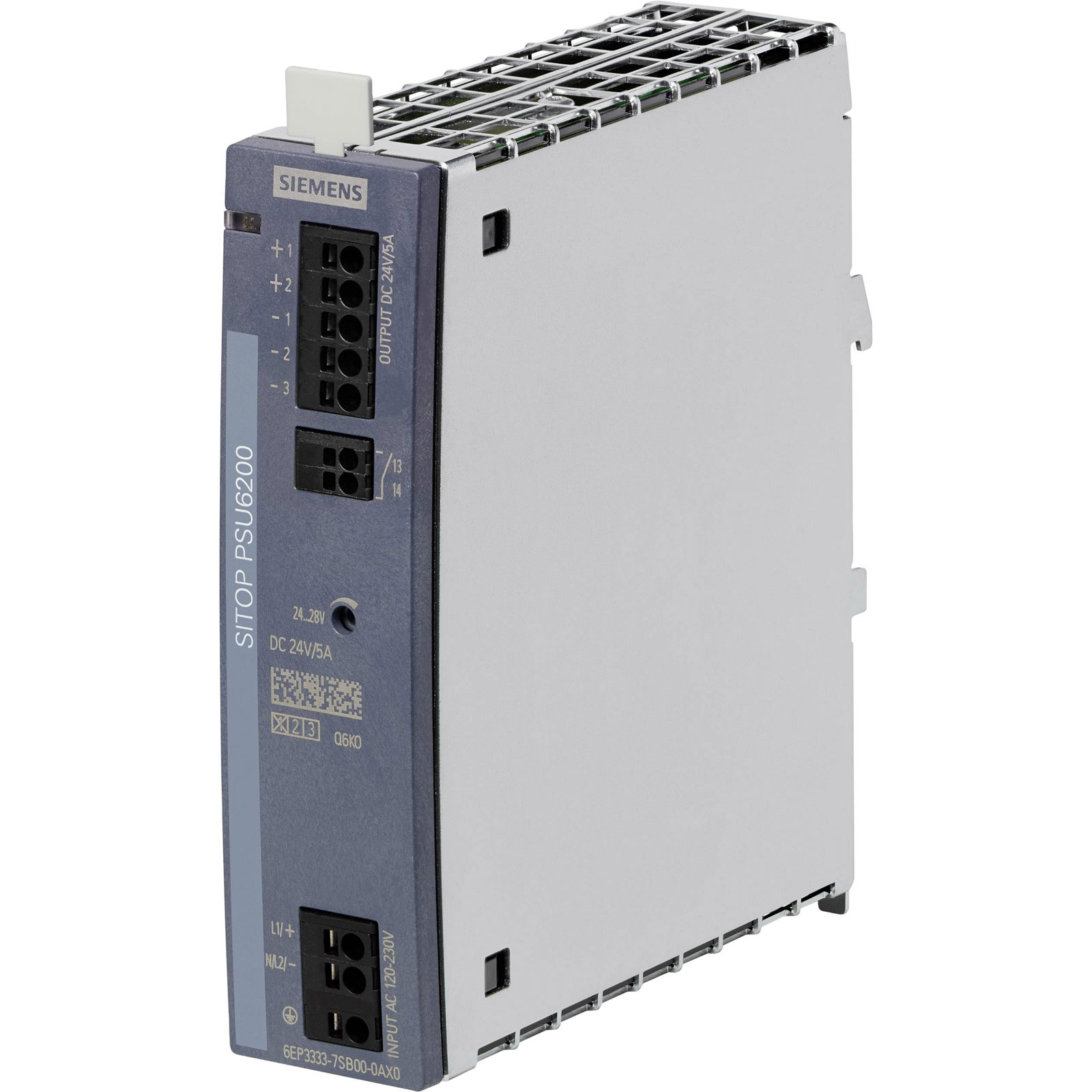

The Siemens 6EP3333-7SB00-0AX0 is an industrial power supply unit that delivers 24 V at 5 A with a total power of 120 W. Designed for DIN rail mounting, it features a single output, making it suitable for a variety of industrial applications that require reliable and consistent power. Typical uses include powering automation systems and industrial machinery.
| Type |
Power supply unit |
| Number of Outputs |
1 |
| Power Rating |
120W |
| 2nd secondary output voltage |
N/A |
| 3rd secondary output voltage |
N/A |
| Built-in height |
225mm |
| Built-in width |
35mm |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Dimensions (L x W x H) |
125 x 35 x 135mm |
| Height |
135mm |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Maximum Operating Temperature |
70°C |
| Maximum Temperature |
85°C |
| Min. temperature |
-40°C |
| Misc Attribute |
6EP3333-7SB00-0AX0 |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Operating temperature (min.) |
-25°C |
| Performance level according to EN ISO 13849-1 |
N/A |
| Phases |
1 |
| Power Consumption |
N/A |
| Power Output |
120W |
| Rated supply voltage AC 50 Hz |
240 - 240V |
| Rated supply voltage AC 60 Hz |
120 - 120V |
| Rated supply voltage DC |
120 - 240V |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
N/A |
| Suitable for distribution board |
true |
| Suitable for safety functions |
N/A |
| Suitable for wall mounting |
rail |
| Type of electric connection |
N/A |
| Voltage type (supply voltage) |
AC/DC |
| Weight |
0.7kg |
| Width |
35mm |
| Width in number of modular spacings |
N/A |
