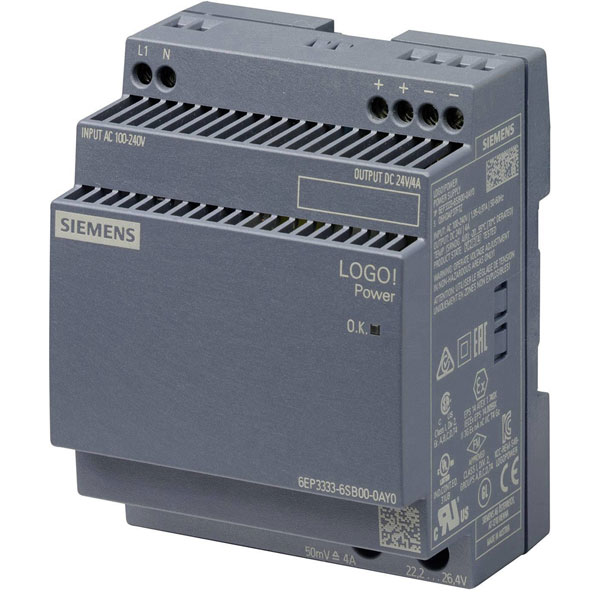

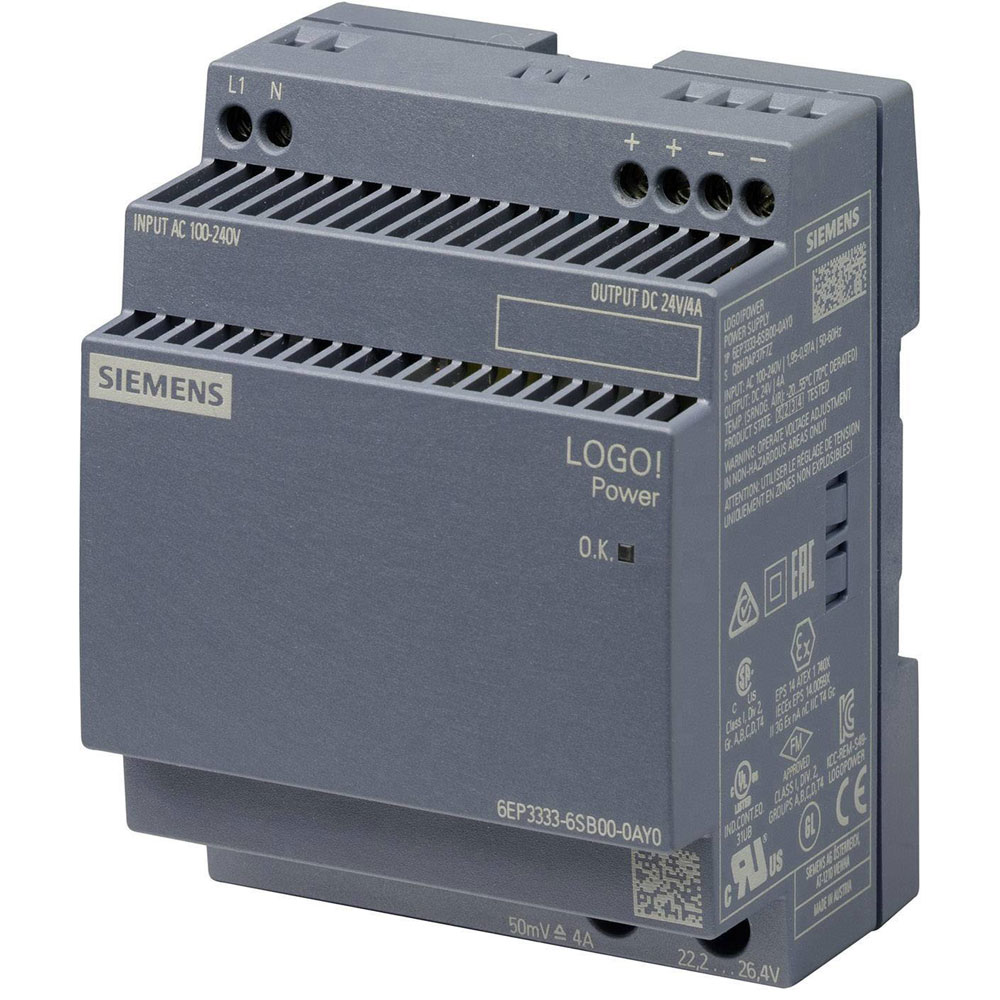

Siemens 6EP33336SB000AY0 Logo!Power PLC Power supply 24V/4A

The Siemens 6EP3333-6SB00-0AY0 PLC power supply unit is designed for reliability and efficiency, providing a stable 24V output for programmable logic controllers in industrial settings. This unit features robust construction with advanced protection mechanisms to ensure durable performance under demanding conditions. Ideal for automation tasks within manufacturing and processing environments, it helps maintain consistent electrical supply for critical control systems.

Type	PLC power supply unit
Output Voltage	24V DC
Number of Outputs	1
Power Rating	96W
1st secondary output voltage	24 - 24V
2nd secondary output voltage	N/A
3rd secondary output voltage	N/A
Built-in height	130mm
Built-in width	72mm
Connection	Screw terminal
Country of origin	Romania
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	53mm
Dim	(L x W x H) 53 x 72 x 90 mm
Direct mounting possible	true
Height	90mm
Input voltage (max.)	240V AC
IP Rating	IP20
Length	53mm
Max. operating voltage	240V AC
Max. output current	4A
Max. output current 1	4A
Max. output current 2	N/A
Max. output current 3	N/A
Max. temperature	+70°C
Min. input voltage	100V AC
Min. operating voltage	100V AC
Min. temperature	-25°C
Misc Attribute	6EP3333-6SB00-0AY0
Nominal value output current 1	4A
Nominal value output current 2	N/A
Nominal value output current 3	N/A
Nominal value output voltage 1	24V
Nominal value output voltage 2	N/A
Nominal value output voltage 3	N/A
Operating Voltage	100 - 240 V AC
Output voltage stabilized	true
Package depth	91mm
Package height	96mm
Package width	67mm
Performance level according to EN ISO 13849-1	N/A
Phases	1
Power Consumption	N/A
Power Output	96W
Power Supply Type	Indoor
Product colour	Multicolour
Quick installation guide	Yes
Rated supply voltage AC 50 Hz	240 - 240V
Rated supply voltage AC 60 Hz	100 - 100V
Rated supply voltage DC	N/A
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	N/A
Stabilized	true
Suitable for distribution board	true
Suitable for rail mounting	true
Suitable for safety functions	N/A
Type of electric connection	N/A
Voltage type (supply voltage)	AC/DC
Wall mounting possible	true
Width	72mm
Width in number of modular spacings	N/A
