Siemens 5TE8111 SENTRON Switch 20A DIN rail mount grey 1-pin 6mm²

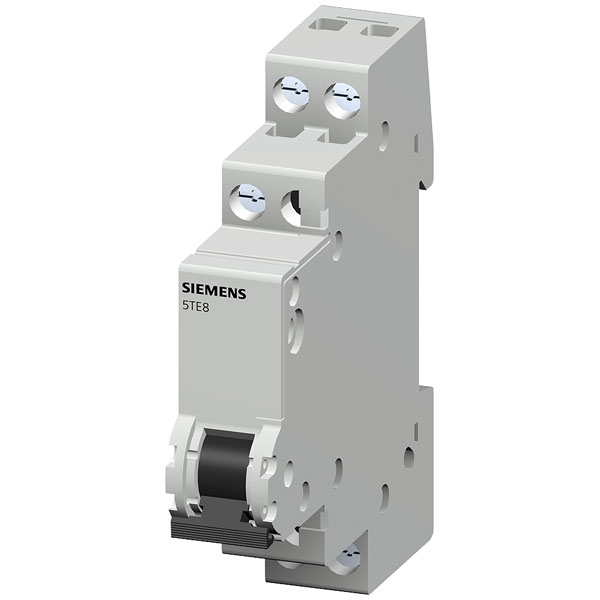

Image Representative of Range

Siemens 5TE8111 SENTRON Switch 20A DIN rail mount grey 1-pin 6mm²

Siemens
Order Code:

07-0557

Brand: Siemens MPN: 5TE8111 EAN-13: 4001869210063
Qty Unit Price (Ex VAT)
1+ £14.33
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
35 available to back orderBack-order availability date - 11/01/2026

The Siemens 5TE8111 is a single-pole isolator with a 6 mm² 20 A capacity, suitable for low-voltage installations. Designed for reliable power disconnection, it is primarily used in electrical distribution systems. Typically, this device is applied in residential or commercial circuit protection to ensure safety and manage electrical loads effectively.
Type Power off
Number of Positions 1
Built-in depth 70mm
Colour calotte Other
Contact Type 1 maker
Cross Section 6mm²
Degree of protection (IP) Other
Depth 17.6mm
Dim (W x H x D) 76.6 x 90 x 17.6 mm
Factory colour Grey
Height 90mm
Lamp socket Other
Lamp Type Other
Nominal Current 20A
Nominal current - rounded value 20A
Number of change-over contacts 0
Number of contacts as normally open contact 1
Number of normally closed contacts 0
Number of normally open contacts 1
Number of partitions 1
Operating Voltage 230V
Rated Current 20A
Rated switching capacity 0.06A
Rated Voltage 230V
Short-circuit breaking capacity (Icw) 10kA
Switching function Off switch
Voltage type AC
Width 76.6mm
Width in number of modular spacings 1
With signal lamp FALSE
