Siemens 5SU13566KK06 RCBO Switch 6A 230V 10kA 1P+N 30mA type A

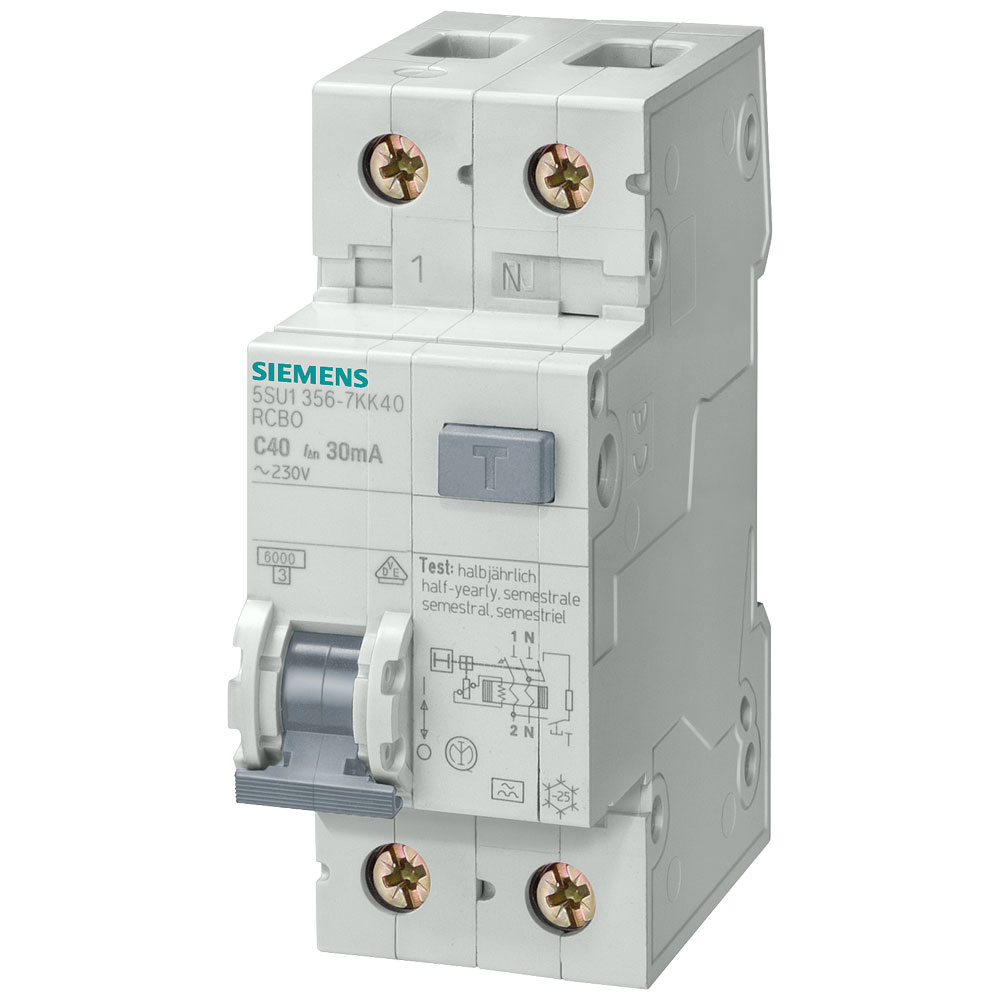

Image Representative of Range

Siemens 5SU13566KK06 RCBO Switch 6A 230V 10kA 1P+N 30mA type A

Siemens
Order Code:

07-0432

Brand: Siemens MPN: 5SU13566KK06 EAN-13: 4001869306681
Qty Unit Price (Ex VAT)
1+ £112.44
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
44 in stock, despatched in 4 working days

The Siemens 5SU13566KK06 Switch is a residual current circuit breaker with a rating of 6 A and 0.03 A sensitivity, designed for 230 V systems. This device offers personal protection by automatically detecting and interrupting earth leakage currents, making it suitable for residential and commercial electrical installations. It combines an earth leakage circuit breaker with a standard circuit breaker to enhance safety and prevent electrical faults.
Type Switch
Current Ratng 0.03A
Anti-nuisance tripping version TRUE
Built-in depth 70mm
Concurrently switching neutral conductor TRUE
Current limiting class 3
Degree of protection (IP) IP20
Depth 70mm
Differential current rating 0.03A
Dim (W x H x D) 36 x 90 x 70 mm
Disconnection characteristic Undelayed
Height 90mm
Leakage current type A
Misc Attribute Switch-off description: without delay
Number of Pins 2
Number of poles (total) 2
Number of protected poles 1
Overvoltage category 2
Pollution degree 2
Rated impulse withstand voltage Uimp 4
Rated insulation voltage Ui 264V
Rated short-circuit breaking capacity according to EN 61009 6
Rated short-circuit breaking capacity according to IEC 60947-2 25kA
Rated short-circuit breaking capacity Icn according to EN 61009-1 6
Release characteristic B
Release characteristics B
Surge current capacity 1kA
Switch-off capacity 6
Voltage Rating 230V
Voltage type AC
Width 36mm
Width in number of modular spacings 2
With interlocking device TRUE
