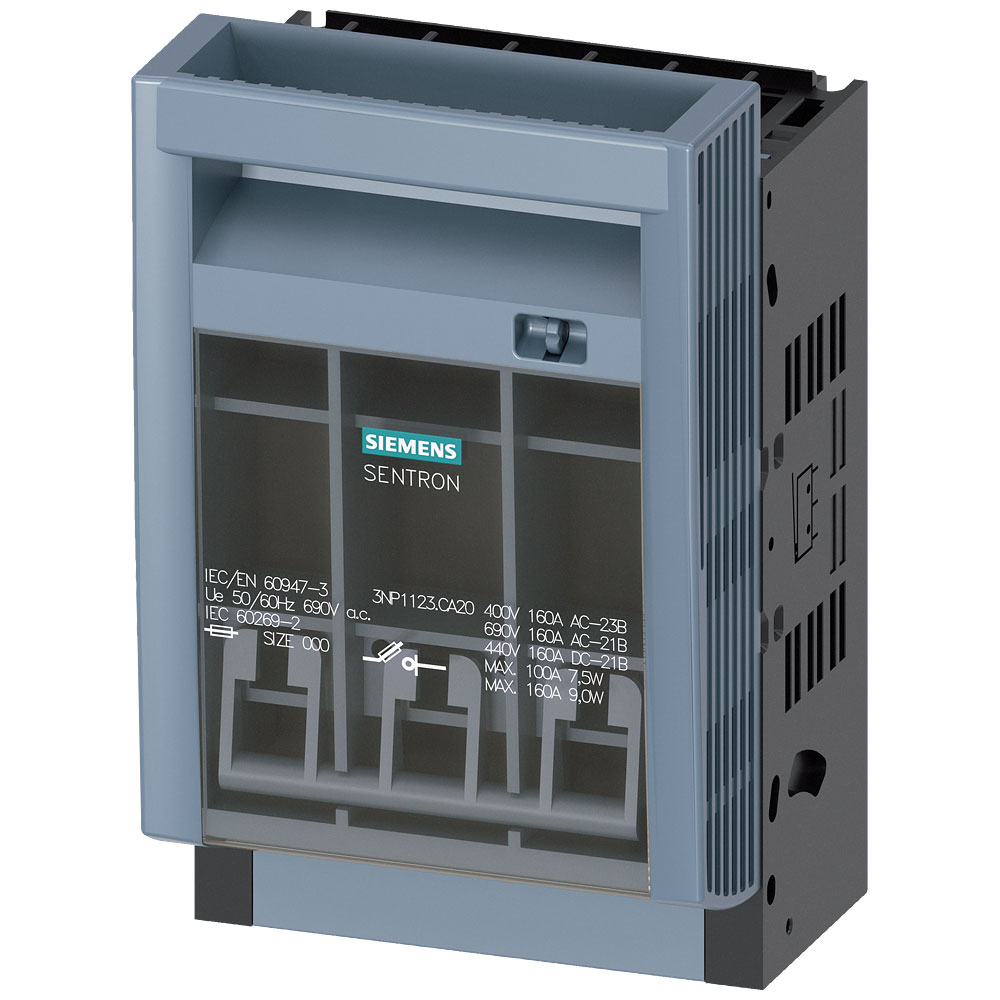

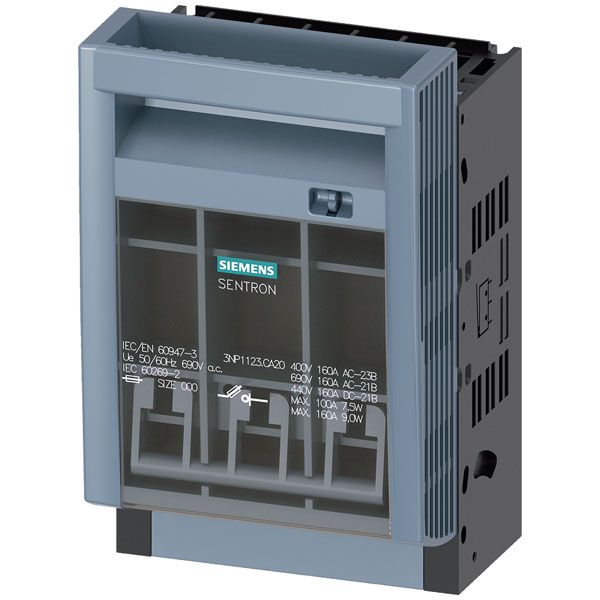

Siemens 3NP11231CA20 SENTRON Fuse Switch 160A 3-pole NH00 690V AC

Image Representative of Range

Siemens 3NP11231CA20 SENTRON Fuse Switch 160A 3-pole NH00 690V AC

Siemens
Order Code:

06-8191

Brand: Siemens MPN: 3NP11231CA20 EAN-13: 4011209699960
Qty Unit Price (Ex VAT)
1+ £49.05
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched same dayBack-order availability date - 22/12/2025

The Siemens 3NP11231CA20 switch disconnector fuse is a 3-pin device with a 160 A rating and operates at 690 V AC. It is designed for reliable circuit protection and disconnection in electrical installations. Typical applications include industrial settings where robust power management is required.
Type Switch disconnector fuse
Current Rating 160A
Cable Entry Other
Conditioned rated short-circuit current Iq 80kA
Degree of protection (IP), front side IP40
Depth 74.1mm
Dim (W x H x D) 88.8 x 141.7 x 74.1 mm
Height 141.7mm
Max. rated operation voltage Ue AC 690V
Misc Attribute Masking level 45 mm
Motor drive integrated FALSE
Motor drive optional FALSE
Nominal Voltage 690V AC
Number of Pins 3
Number of Poles 3
Position control element Front side
Rated permanent current Iu 125A
Suitable for busbar mounting FALSE
Suitable for floor mounting TRUE
Suitable for front mounting FALSE
Suitable for fuses NH000
Type of control element Cover grip
Type of electrical connection of main circuit Frame clamp
Version as emergency stop installation FALSE
Version as main switch FALSE
Version as safety switch TRUE
Width 88.8mm
With error protection FALSE
