SEPA HY60Q05PSE04A-BLI Radial Extractor 5V DC 4.1m³/h 60.9x5x56.4mm

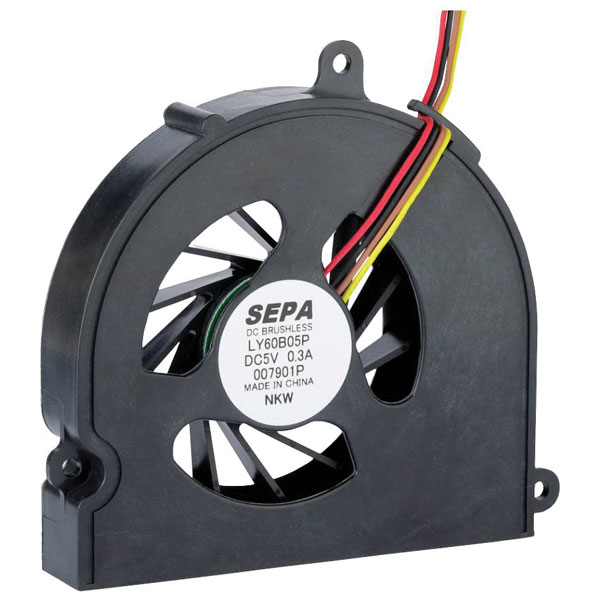

Image Representative of Range

SEPA HY60Q05PSE04A-BLI Radial Extractor 5V DC 4.1m³/h 60.9x5x56.4mm

SEPA
Order Code:

10-5921

Brand: SEPA MPN: HY60Q05PSE04A-BLI EAN-13: 4053199527861
Qty Unit Price (Ex VAT)
1+ £11.50
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
49 in stock, despatched in 4 working days

The SEPA HY60Q05PSE04A radial extractor is a compact component cooling fan measuring 60.9 x 5 x 56.4 mm, delivering 4.1 m³/h of airflow. Designed for industrial applications, it operates on 5 V DC, making it ideal for tight spaces requiring efficient heat dissipation. This fan is often used in electronic devices and systems for effective thermal management.
Type Radial extractor
Voltage 4.5 - 5.5 V DC
Dimensions (L x W x H) 60.9 x 5 x 56.4 mm
Air Flow 4.1m³/h
Bearing Type Plain bearing
Noise 27dB
Cable Length 15.00cm
Connection Open end cable
Height 56.4mm
Length 60.9mm
Max. current consumption 140mA
Max. operating voltage 5.5V DC
Max. temperature +80°C
Min. operating voltage 4.5V DC
Min. temperature -20°C
Misc Attribute HY60Q05PSE04A
Number of wires 4
Pressure (max.) 96 Pa
Rotational speed 4400 U/min
Width 5mm
