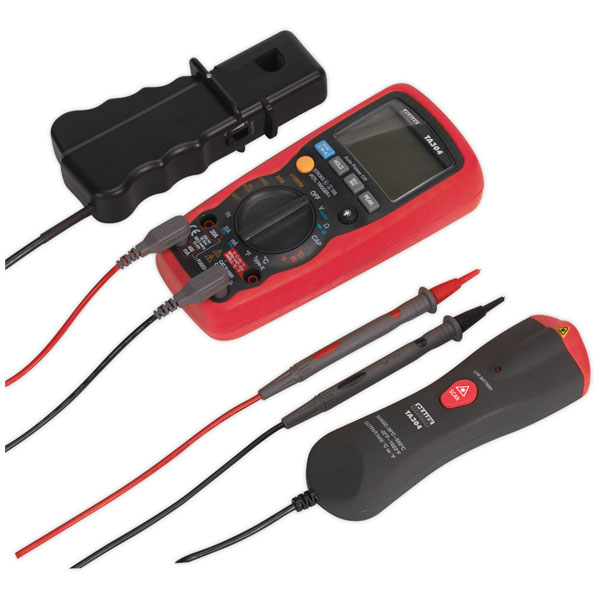

15-Function, auto-ranging automotive diagnostic multimeter with IR thermometer attachment. Combination digital/bar graph display gives accurate indication of component outputs. Large, easy-to-read high contrast display with bright, white back light. Workshop-tough, durable case with integral stand and auto-power shut-off. High-speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems. Features auto-ranging and data-hold functions with overload protection on all ranges. Includes relative functions including min./max. and peak hold. Supplied with inductive coupler, infrared temperature probe, test probes and thermocouple in storage case.
- 15-Function, auto-ranging automotive diagnostic multimeter with infrared thermometer attachment.
- Combination digital/bar graph display gives accurate indication of component outputs.
- Large, easy-to-read high contrast display with bright, white back light.
- Workshop-tough, durable case with integral stand and auto-power shut-off.
- High speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems.
- Features auto-ranging and data-hold functions with overload protection on all ranges.
- Includes relative functions including min./max. and peak hold.
- Supplied with inductive coupler, infrared temperature probe, test probes and thermocouple in storage case.
- Model No. TA304
| Type |
Digital automotive analyser |
| AC Current |
400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging) |
| AC Voltage |
400mV, 4V, 40V, 400V, 700V (Auto-Ranging) |
| Auto power off |
Yes |
| Auto-Ranging |
Yes |
| Back Light |
Yes |
| Bar Graph Display |
Yes |
| Batteries (supplied) |
9V (PP3) |
| Capacitance |
40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF (Auto-Ranging) |
| Continuity |
<30O Continuity Buzzer 2kHz |
| DC Current |
400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging) |
| DC Voltage |
400mV, 4V, 40V, 400V, 1000V (Auto-Ranging) |
| Digits Height |
20mm |
| Diode Check |
Yes |
| Display Hold |
Yes |
| Duty Cycle |
0.1-99.9% |
| Dwell |
4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
| Frequency |
0.001Hz-9.99MHz (Auto-Ranging) |
| Hi-Impact Case |
Yes |
| Inductive Coupler |
Yes |
| IR Temperature |
-20 to +280°C, -4 to +536°F |
| Low Battery Indicator |
Yes |
| Nett Weight |
360g |
| PC Interface |
No |
| Pulse Width |
0.1-10ms |
| Resistance |
400O, 4kO, 40kO, 400kO, 4MO, 40MO (Auto-Ranging) |
| Size (L x W x D) |
182 x 82 x 55mm |
| Tach (rpm) |
2-10Cyl, 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm |
| Temperature |
-20 to +760°C, -4 to +1400°F |
| Transistor Test |
No |
