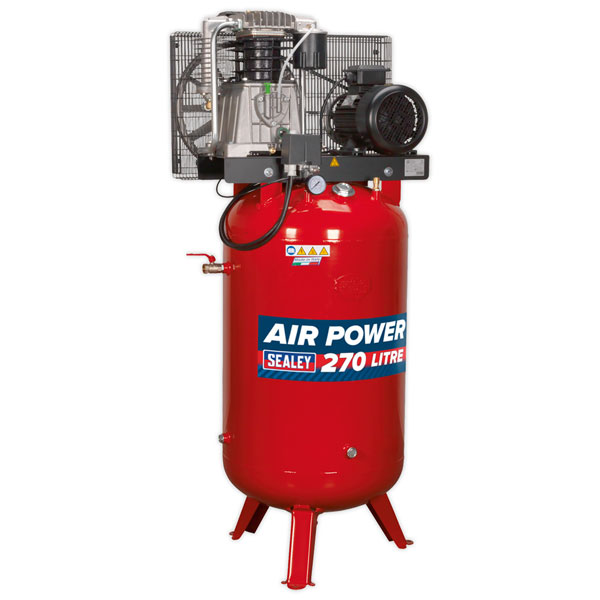

Heavy-duty 3-phase compressor suitable for the professional workshop. 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
- Air Displacement: 29.3cfm(830L/min).
- Maximum Free Air Delivery: 22.6cfm(640L/min).
- Maximum Pressure: 145psi(10bar).
- Heavy-duty 3-phase compressor suitable for the professional workshop.
- 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.
- Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.
- Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
- Model No. SACV52775B
| Type |
Belt Driven Air Compressor |
| Capacity |
270L |
| Maximum Pressure |
145psi(10bar) |
| Air Displacement cfm(L/min) |
29.3(830) |
| Horsepower |
7.5hp |
| Lifetime Warranty |
No |
| Maximum Free Air Delivery cfm(L/min) |
22.6(640) |
| Minimum Rated Supply |
32A |
| Motor Output |
7.5hp |
| Nett Weight |
164kg |
| Oil Capacity |
1.57L |
| Outlet |
3/4"BSP Female Tap |
| Phase |
3ph |
| Receiver Capacity |
270L |
| Size (W x D x H) |
1200 x 800 x 2100mm |
| Speed |
1280rpm |
| Supply |
400V/32A |
