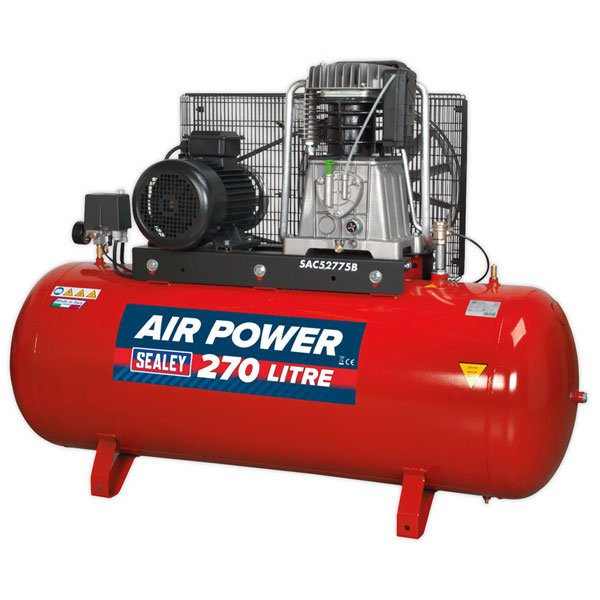

Heavy-duty 3-phase compressor suitable for the professional workshop. 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.
- Air Displacement: 29.7cfm(841L/min).
- Maximum Free Air Delivery: 21.5cfm(609L/min).
- Maximum Pressure: 145psi(10bar).
- Heavy-duty 3-phase compressor suitable for the professional workshop.
- 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model.
- Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.
- Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
- Supplied with full CE certification, test certificates and operating/maintenance manual.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
- Model No. SAC52775B
| Type |
Belt Driven Air Compressor |
| Capacity |
270L |
| Maximum Pressure |
7.5hp |
| Air Displacement cfm(L/min) |
29.7(841) |
| Horsepower |
7.5hp |
| Lifetime Warranty |
No |
| Maximum Free Air Delivery cfm(L/min) |
21.5(609) |
| Minimum Rated Supply |
32A |
| Motor Output |
7.5hp |
| Nett Weight |
143kg |
| Oil Capacity |
1.57L |
| Outlet |
1/2"BSP Female Tap |
| Phase |
3ph |
| Receiver Capacity |
270L |
| Size (W x D x H) |
1550 x 510 x 1070mm |
| Speed |
1280rpm |
| Supply |
400V/32A |
