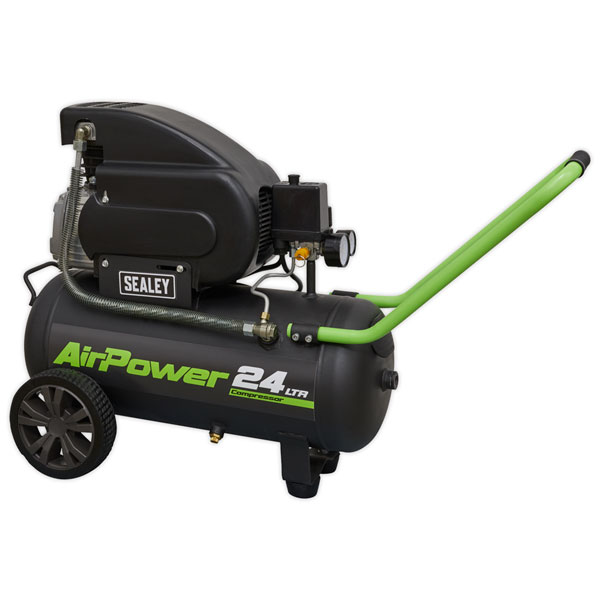

Sealey SAC2420E Air Compressor 24L Direct Drive 2hp

Aluminium cylinder head with cast iron cylinder gives added resistance to wear. Suitable for general-purpose workshop applications. Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation. Precision welded receiver tank manufactured to meet Pressure Vessel Directive. Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures. Fitted with 3-pin plug.

• Air Displacement: 6.8cfm(193L/min).
• Maximum Free Air Delivery: 4.6cfm(130L/min).
• Maximum Pressure: 116psi(8bar).
• Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• Suitable for general-purpose workshop applications.
• Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.
• Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• Fitted with 3-pin plug.
• Model No. SAC2420E

Type	Direct Drive
Capacity	24L
Maximum Pressure	2hp
Air Displacement cfm(L/min)	6.8(193)
Horsepower	2hp
Lifetime Warranty	No
Maximum Free Air Delivery cfm(L/min)	4.6(130)
Minimum Rated Supply	13A
Motor Output	2hp
Nett Weight	26.5kg
Noise Level	96dB(A)
Oil Capacity	0.27L
Outlet	Quick Release Coupling
Phase	1ph
Receiver Capacity	24L
Size (W x D x H)	600 x 290 x 585mm
Supply	230V/13A
