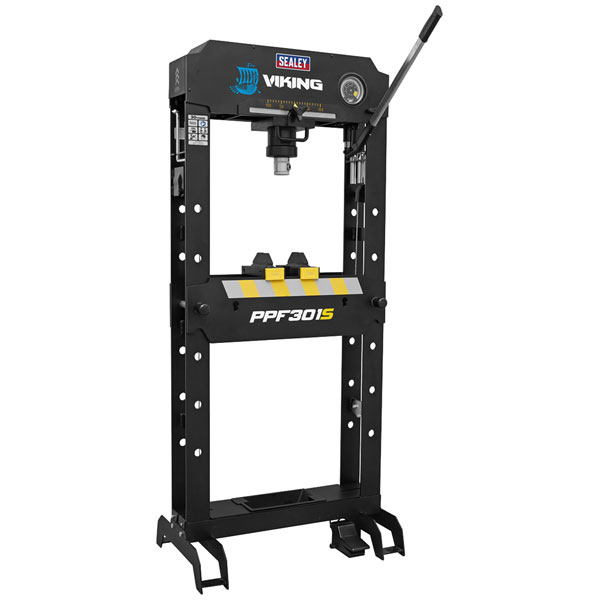

Sealey PPF301S Viking Floor Type Air/Hydraulic Press Sliding Ram & Pedal 30T

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

• Table Aperture: 168mm.
• Working Table Width: 770mm.
• Ram Stroke: 220mm.
• Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.
• Screw adjustable ram and adjustable work area with removable tray.
• Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
• Frame head fitted with ram pressure gauge.
• Winch assisted press table adjustment.
• Storage for press pins, included in frame.
• Supplied with press pins flat pressing plate/V-blocks.
• 5 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Model No. PPF301S

Type	Floor
Capacity	30tonne
Air Consumption	4.5cfm
Bench or Floor Mounting	Floor
Gauge Included	Yes
Lateral Ram Travel	200mm
Maximum Height - Ram to Table	850mm
Minimum Height - Ram to Table	25mm
Nett Weight	162.5kg
Operating Table Width	600mm
Overall Height	1800mm
Ram Diameter	Ø103.2mm
Ram Stroke	220mm
Screw Extension	75mm
Table Aperture	168mm
Working Table Depth	188mm
Working Table Width	770mm
